Product Summary

The DB103 is a glass passivated bridge rectifier.

Parametrics

DB103 absolute maximum ratings: (1)Maximum Reverse Peak Repetitive Voltage: 200V; (2)Maximum RMS Voltage: 140V; (3)Maximum DC Blocking Voltage: 200V; (4)Maximum Average Forward Rectified Current @TA=40°C: 1A; (5)Peak Forward Surage Current , 8.3ms Single Half Sine-Wave Super Imposed On Rated Load (JEDEC Method): 30A; (6)Typical Junction Capacitance: 25pF; (7)Operating Temperature Range: -55 ~ +150°C; (8)Storage Temperature Range: -55 ~ +150°C.

Features

DB103 features: (1)Rating to 1000V PRV; (2)Ideal for printed circuit board; (3)Low forward voltage drop; (4)High current capability.

Diagrams

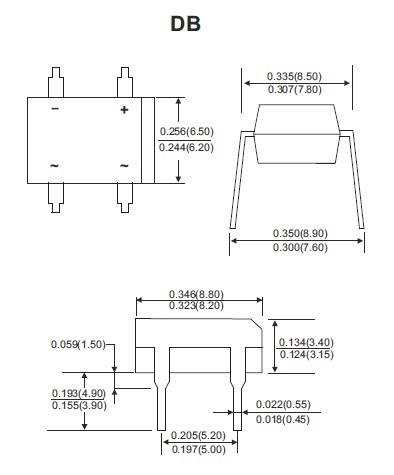

DB103 pin connection

Image Part No Mfg Description Data Sheet Download Pricing
(USD)		 Quantity
DB103
DB103
Rectron
Bridge Rectifiers 1A 200V
Data Sheet
0-1: $0.26
1-100: $0.23
100-500: $0.19
500-1000: $0.17
DB103-B
DB103-B
Micro Commercial Components (MCC)
Bridge Rectifiers 200V 1A
Data Sheet
Negotiable
DB103-BP
DB103-BP
Micro Commercial Components (MCC)
Bridge Rectifiers 1.0A 200V
Data Sheet
0-1: $0.44
1-10: $0.33
10-100: $0.23
100-500: $0.21
DB103C
DB103C
Rectron
Bridge Rectifiers 1A 200V GP
Data Sheet
0-2500: $0.08
DB103-C-S-NT
DB103-C-S-NT
Rectron
Bridge Rectifiers DIP,Bridge,NT DB-1,1A,200V
Data Sheet
0-2500: $0.09
DB103G
DB103G
GeneSiC Semiconductor
Bridge Rectifiers SI BRIDGE RECT DB-PK 50-1000V 1A200P/140R
Data Sheet
0-1000: $0.09
1000-2000: $0.08
2000-5000: $0.08
5000-10000: $0.08
DB103-G
DB103-G

RECTIFIER BRIDGE 1A 200V DB
Data Sheet
0-2500: $0.09
DB103S
DB103S
Rectron
Bridge Rectifiers 1A 200V
Data Sheet
Negotiable
