DD404SIA

Product Summary

The DD404SIA is comprised of two 4 Amp CMOS high speed MOSFET drivers. Each output can source and sink 4 A of peak current while producing voltage rise and fall times of less than 15ns to drive the latest IXYS MOSFETS & IGBT's. The input of the driver is compatible with TTL or CMOS and is fully immune to latch up over the entire operating range. Designed with small internal delays, cross conduction/current shoot-through is virtually eliminated in the DD404SIA. Improved speed and drive capabilities are further enhanced by very low, matched rise and fall times.
Additionally, each driver in the DD404SIA incorporates a unique ability to disable the output under fault conditions. When a logical low is forced into the Enable input of a driver, both of it's final output stage MOSFETs (NMOS and PMOS) are turned off. As a result, the respective output of the DD404SIA enters a tristate mode and achieves a Soft Turn-Off of the MOSFET/IGBT when a short circuit is detected. This helps prevent damage that could occur to the MOSFET/IGBT if it were to be switched off abruptly due to a dv/dt over-voltage transient.

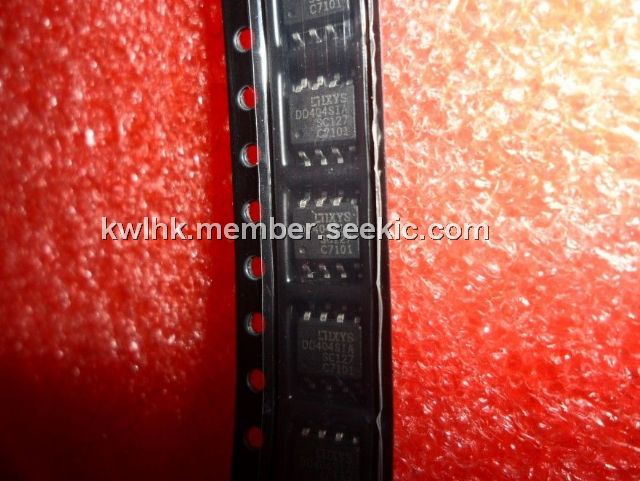

The DD404SIA is available in the standard 8 pin P-DIP (PI), SOP-8 (SI -with metal tab), SOP-8 (SIA -without metal tab) and SOP-16 (SI-16) packages.

Parametrics

The absolute maximum ratings of DD404SIA are (1)Supply Voltage: 25 V; (2)All Other Pins: -0.3 V to VCC + 0.3 V; (3)Junction Temperature: 150 °C; (4)Storage Temperature: -65 °C to 150 °C; (5)Lead Temperature (10 sec): 300 °C

Features

The features of DD404SIA can be summarized as (1)Built using the advantages and compatibility of CMOS and IXYS HDMOSTM processes; (2)Latch-Up Protected; (3)High Peak Output Current: 4A Peak; (4)Wide Operating Range: 4.5V to 25V; (5)Ability to Disable Output under Faults; (6)High Capacitive Load Drive Capability: 1800pF in <15ns; (7)Matched Rise And Fall Times; (8)Low Propagation Delay Time; (9)Low Output Impedance; (10)Low Supply Current; (11)Two identical drivers in single chip

Diagrams

<P><IMG alt="DD404SIA Pin Configuration" src="http://www.seekic.com/uploadfile/ic-mfg/20128820237634.jpg" border=0></P>
