Product Summary

The GO1525-CTAE3 is a self contained, miniature Voltage Controlled Oscillator (VCO). It produces a clean 1.485GHz reference clock signal for the GS1560 and GS9060 deserializers, and for the GS1532 and GS9062 serializers. The control voltage range is from 1.0 volts to 1.5 volts and is derived from the on-chip PLLs. The applications of the GO1525-CTAE3 include VCO for the GS1560, GS1559 and GS9060 Deserializers, and the GS1532, GS1531 and GS9062 Serializers.

Parametrics

GO1525-CTAE3 absolute maximum ratings: (1)Supply Voltage, VCC: -2.25 to 2.75 V; (2)Supply Current, IS: 15 mA; (3)Control Voltage Range, VCTR: 1.0 to 1.5 V; (4)Control Voltage Sensitivity, df/dV: 25 to 39 MHz/V; (5)Operating Frequency Range, Fvco, VCTR = 1.0V: 1483.5MHz; VCTR = 1.5V: 1485.0 MHz; (6)Output Signal Level, VOUT: -12 to -6 dBm.

Features

GO1525-CTAE3 features: (1)generates 1.485GHz or 1.485/1.001GHz signal for HD-LINX ICs; (2)low current consumption; (3)50Ω output impedance; (4)operates from a single 2.5V supply; (5)8 pin tape on reel; (6)Pb-free and RoHS Compliant.

Diagrams

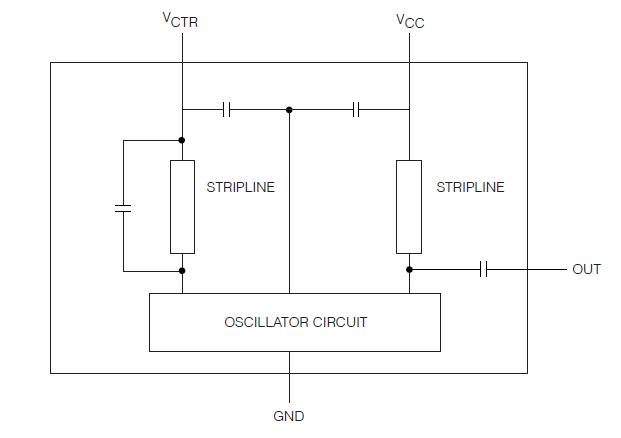

GO1525-CTAE3 block diagram
