Product Summary

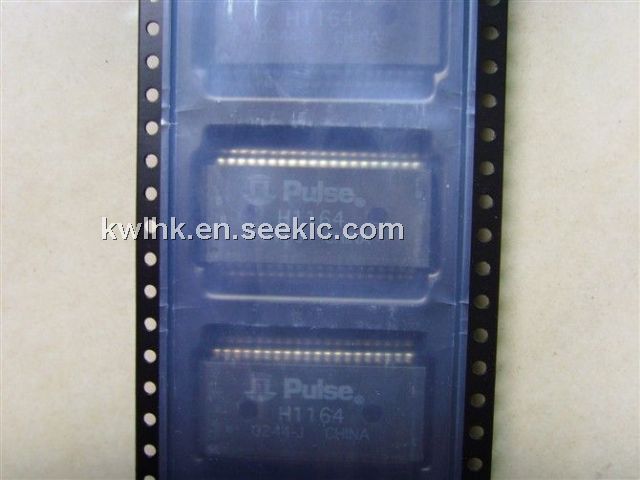

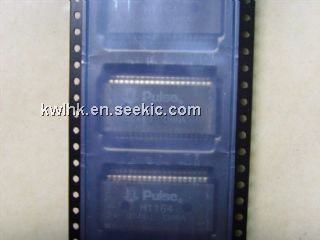

The H1164 is a 10/100 base-tx transformer module for auto mdi/mdix applications.

Parametrics

H1164 absolute maximum ratings: (1)Insertion Loss (MAX): -1.0; (2)Return Loss (dB MIN): -18; (3)Crosstalk (dB MIN): -55; (4)Differential to Common Mode Rejection (dB MIN): -37; (5)Hipot (Vrms MIN): 1500.

Features

H1164 features: (1)For RoHS part add suffix NL5; (2)Peak solder temperature rating per Table 5-2 in IPC/JEDEC J-STD-020C; (3)Symmetrical TX and RX channels for Auto MDI/MDIX capability; (4)Approved for use with the Broadcom BCM5226 and Level One LXT9784; (5)Meets IEEE 802.3 specification.

Diagrams

H1164 block diagram

Image Part No Mfg Description Data Sheet Download Pricing
(USD)		 Quantity
H1164
H1164
Pulse
Transformers Audio & Signal 40P SOIC TRANSFORMER
Data Sheet
0-1: $9.64
1-10: $7.28
10-100: $5.37
100-500: $4.87
H1164NL
H1164NL
Pulse
Transformers Audio & Signal 40P SOIC TRANSFORMER
Data Sheet
0-1: $6.10
1-10: $4.57
10-100: $3.87
100-500: $3.65
H1164NLT
H1164NLT
Pulse
Transformers Audio & Signal 40P SOIC TRANSFORMER
Data Sheet
0-1: $6.10
1-10: $4.57
10-100: $3.87
100-250: $3.87
H1164T
H1164T
Pulse
Transformers Audio & Signal 40P SOIC TRANSFORMER
Data Sheet
0-67: $12.37
67-100: $11.56
100-250: $11.56
250-500: $9.90
