Product Summary
The HD66410TAO is a dot matrix graphic LCD(Liquid Crystal Display) using a bit-mapped method. The HD66410TAO provides a highly flexible display through its on-chip display RAM, in which each two bits of data can be used to turn on or off one dot on LCD panel with four-level grey scale. A single HD66410TAO can display a maximum of 160x80 dots using its powerful display control functions. It can display only eight lines out of eighty lines. This function realize low power consumption because high voltage for driving LCD is not needed.
Parametrics
HD66410TAO absolute maximum ratings: (1)Input voltage 1: –0.3 to VCC + 0.3 V; (2)Input voltage 2: 0.3 to VLCD + 0.3 V; (3)Operation temperature: –40 to +85 °C; (4)Storage temperature: –55 to +110 °C.
Features
HD66410TAO features: (1)Built-in bit-mapped display RAM: 25.6kbits; (2)Grey scale display: PWM four-level grey scale can be selected from 32 levels; (3)Grey scale memory management: Packed pixel; (4)Partial display: Eight-lines data can be displayed in any place; (5)An 80-system MPU interface; (6)Power supply voltage for operation : 2.2V to 5.5V; (7)Power supply voltage for LCD : 13 V max.; (8)Selectable multiplex duty ratio: 1/8, 1/32, 1/64, 1/80; (9)Built-in oscillator: external resister.

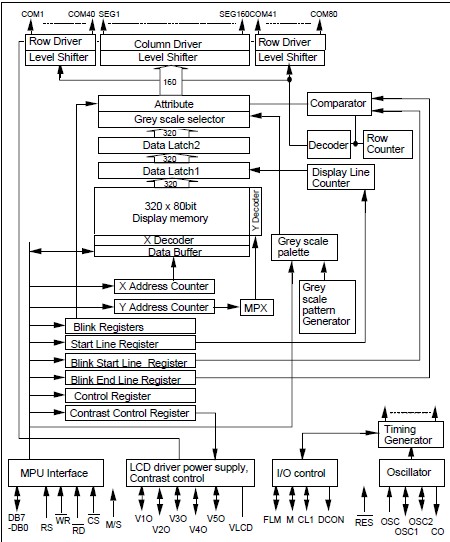

Diagrams
