Product Summary
The HFA3524IA is a for 2.5GHz/600MHz dual frequency synthesizer . Applications are (1)Systems Targeting IEEE 802.11 Standard; (2)PCMCIA Wireless Transceiver; (3)Wireless Local Area Network Modems; (4)TDMA Packet Protocol Radios; (5)Part 15 Compliant Radio Links; (6)Portable Battery Powered Equipment.
Parametrics
HFA3524IA absolute maximum ratings: (1)Power Supply Voltage VCC: -0.3V to +6.5V; (2)Power Supply Voltage VP: -0.3V to +6.5V; (3)Voltage on Any Pin with GND = 0V (VI): -0.3V to +6.5V.
Features
HFA3524IA features: (1)2.7V to 5.5V Operation; (2)Low Current Consumption; (3)Selectable Powerdown Mode ICC = 1μA Typical at 3V; (4)Dual Modulus Prescaler, 32/33 or 64/65; (5)Selectable Charge Pump High Z State Mode.
alt="HFA3524IA pin connection"

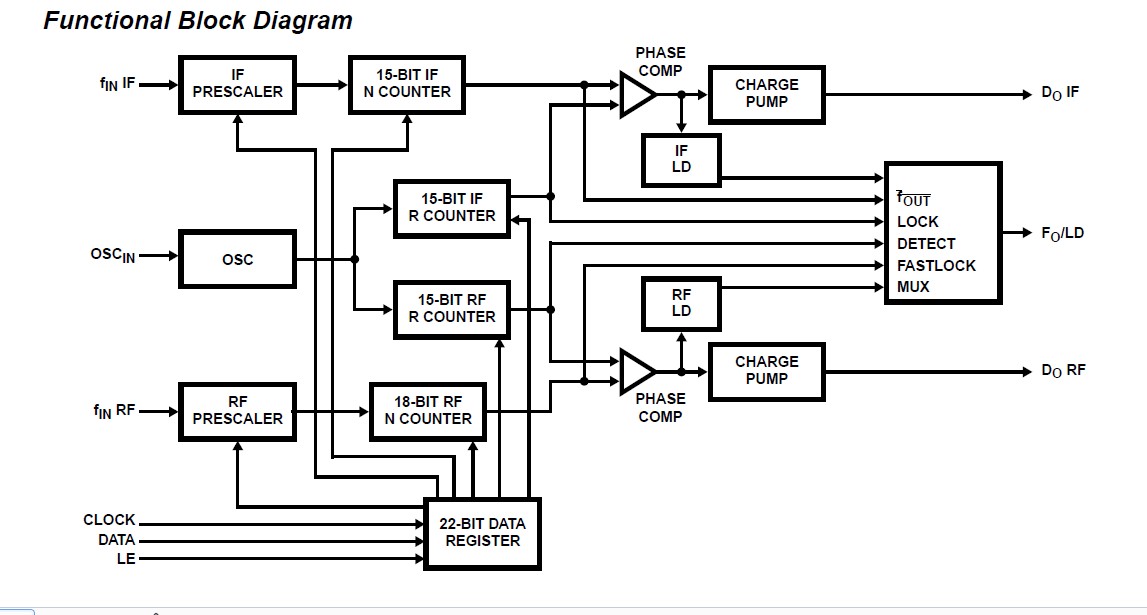

Diagrams
