ICE2A165

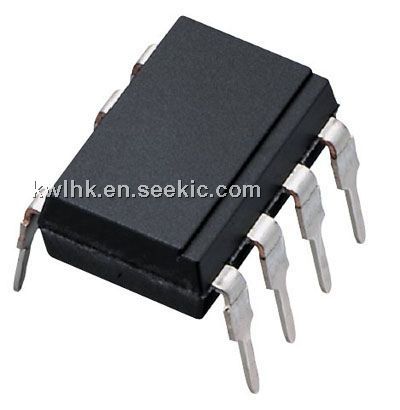

ICE2A165, off-line SMPS current mode controller, 650 V, 21.5 kHz, DIP

Rated 5 Rating 5 | reviews | Write a review

Price:: US $3.27~5.39 / piece [Get Latest Price]

Reference price:

Qty (lots)	Price/lot
1 ~ 100 :	5.39 / Piece
101 ~ 500 :	4.28 / Piece
501 ~ 1000 :	3.27 / Piece

PartNumber:: ICE2A165

Brand:: eupec GmbH - infineon | Pack: DIP | D/C: 11+

Availability:: Supply Ability: 10000/Week Can Ship Immediately
Delivery: 10-15 Business Days (ships out within 3 Business days)

Quantity:: piece

Total Price:: US $0

Place Order via Escrow Service

Not exactly what you want? Post a quick Buying Request!

Sold By

Mr. harry's store

(Hong Kong)

100% Positive feedback

Detailed seller ratings

Visit Store

Contact Now

Esrcow Service

Place orders confidently and securely via it

Safe payments
Quick and easy transactions
Free service charges

Learn More >>

Previous Next

Products Upload time: 2013-09-11

From Other Seller

Part Number:ICE2A165
US $3.27 - 5.39
Quantity:

piece

Product Summary

The ICE2A165 is an off-line SMPS current mode controller. This device provides several special enhancements to satisfy the needs for low power standby and protection features. The frequency reduction is limited to 21.5 kHz to avoid audible noise. In case of failure modes like open loop, overvoltage or overload due to short circuit the device switches in Auto Restart Mode which is controlled by the internal protection unit.

Parametrics

ICE2A165 absolute maximum ratings: (1)Drain Source Voltage ICE2A165/265/365: 650 V; (2)Drain Source Voltage ICE2A180/280: 800 V; (3)VCC Supply Voltage: -0.3 to 22 V; (4)FB Voltage: -0.3 to 6.5 V; (5)SoftS Voltage:-0.3 to 6.5 V; (6)ISense: -0.3 to 3 V; (7)Junction Temperature: -40 to 150 °C; (8)Storage Temperature: -50 to 150 °C.

Features

ICE2A165 features: (1)650V/800V Avalanche Rugged CoolMOS; (2)Only few external Components required; (3)Input Undervoltage Lockout; (4)100kHz Switching Frequency; (5)Max Duty Cycle 72%; (6)Low Power Standby Mode to meet European Commission Requirements; (7)Thermal Shut Down with Auto Restart; (8)Overload and Open Loop Protection; (9)Overvoltage Protection during Auto Restart; (10)Adjustable Peak Current Limitation via External Resistor; (11)Overall Tolerance of Current Limiting < +/-5%; (12)Internal Leading Edge Blanking; (13)User defined Soft Start; (14)Soft Switching for Low EMI.
