Product Summary
The ICL7611DCTV is a single operational amplifier. The ICL7611DCTV combines ultra low input current with low power operation over a wide supply voltage range. Applications of the ICL7611DCTV include: battery powered instruments, low leakage amplifiers, long time constant integrators, low frequency active filters, hearing aids and microphone amplifiers, low droop rate sample/hold amplifiers and picoammeters.
Parametrics
ICL7611DCTV absolute maximum ratings: total supply voltage V+ to V-: 18V; (2) Input voltage: V+ +0.3 to V- -0.3V; (3) Differential input voltage: ± (V+ +0.3V) - (V- -0.3V) ; (4) Operating temperature range: -55 to +125°C; (5) Leading temperature soldering, 10 sec: 300°C.
Features
ICL7611DCTV features: (1) 1pA typical bias current-4nA maximum@125°C; (2) wide supply voltage range±1V to ±8V; (3) Industry standard pinouts; (4) Programmable quiescent currents of 10,00 and 1000μA; (5) Monolithic, low power CMOS Design.

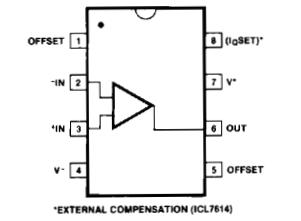

Diagrams
Image | Part No | Mfg | Description | ![]() |
Pricing (USD) |
Quantity | ||||
---|---|---|---|---|---|---|---|---|---|---|
![]() |

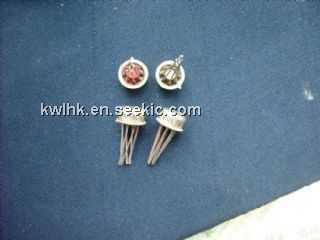

![]() ICL7611DCTV |
![]() Maxim Integrated Products |
![]() Operational Amplifiers - Op Amps |
![]() Data Sheet |
![]() Negotiable |
|
||||
