Product Summary
The IR2130J is a high voltage, high speed power MOSFET and IGBT driver with three independent high and low side referenced output channels. Proprietary HVIC technology enables ruggedized monolithic construction. Logic inputs are compatible with CMOS or LSTTL outputs, down to 2.5V logic.
Parametrics
IR2130J absolute maximum ratings: (1)High Side Floating Supply Voltage: -0.3 to 625 V; (2)High Side Floating Offset Voltage: VB1,2,3 - 25 to VB1,2,3 + 0.3 V; (3)High Side Floating Output Voltage: VS1,2,3 - 0.3 to VB1,2,3 + 0.3 V; (4)Low Side and Logic Fixed Supply Voltage: -0.3 to 25 V; (5)Logic Ground: VCC - 25 to VCC + 0.3 V; (6)Low Side Output Voltage: -0.3 to VCC + 0.3 V; (7)Logic Input Voltage (HIN1,2,3, LIN1,2,3 & ITRIP): VSS - 0.3 to (VSS + 15) or (VCC + 0.3), whichever is lower; (8)FAULT Output Voltage: VSS - 0.3 to VCC + 0.3 V; (9)Junction Temperature: 150 ℃; (10)Storage Temperature: -55 to 150 ℃; (11)Lead Temperature (Soldering, 10 seconds): 300 ℃.
Features
IR2130J features: (1)Floating channel designed for bootstrap operation Fully operational to +600V Tolerant to negative transient voltage dV/dt immune; (2)Gate drive supply range from 10 to 20V; (3)Undervoltage lockout for all channels; (4)Over-current shutdown turns off all six drivers; (5)Independent half-bridge drivers; (6)Matched propagation delay for all channels; (7)2.5V logic compatible; (8)Outputs out of phase with inputs; (9)Cross-conduction prevention logic; (10)Also available LEAD-FREE.

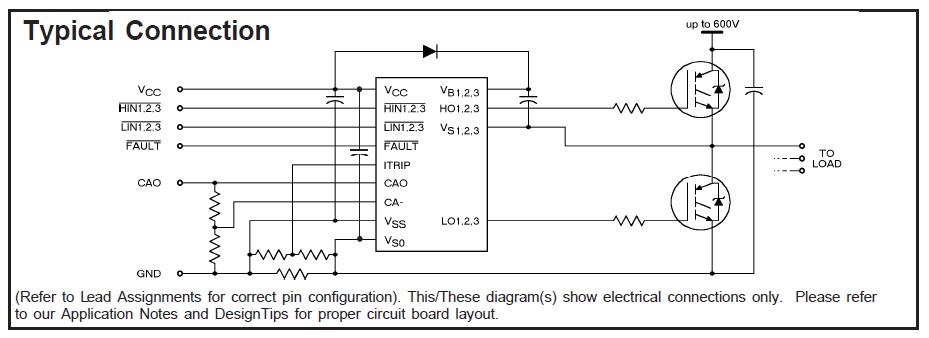

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |

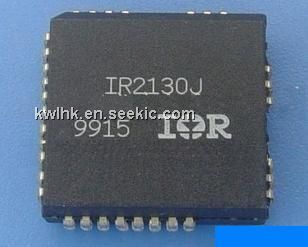

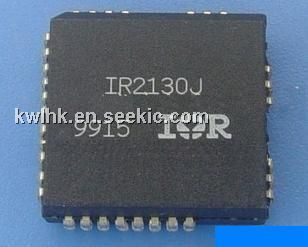

 IR2130J |
|
IC DRIVER BRIDGE 3-PHASE 44-PLCC |
Data Sheet |
Negotiable |
|
||||||||
 |
IR2130JPbF |
International Rectifier |
Power Driver ICs |
Data Sheet |
|
|
||||||||
|
IR2130JTRPBF |
International Rectifier |
Power Driver ICs |
Data Sheet |
|
|
||||||||
|
IR2130JTR |
|
IC DRIVER BRIDGE 3-PHASE 44-PLCC |
Data Sheet |
Negotiable |
|
||||||||
