IR2136J

IR2136J, 3-phase bridge driver, 3.3V, PLCC

Rated 5 Rating 5 | reviews | Write a review

Price:: US $0.99~3.20 / piece [Get Latest Price]

Reference price:

Qty (lots)	Price/lot
100 ~ 500 :	3.20 / Piece
500 ~ 1000 :	2.10 / Piece
1000 ~ 1500 :	0.99 / Piece

PartNumber:: IR2136J

Brand:: International Rectifier - IR | Pack: PLCC | D/C: 08+

Availability:: Supply Ability: 10000/Month Can Ship Immediately
Delivery: 10-15 Business Days (ships out within 3 Business days)

Quantity:: piece

Total Price:: US $0

Place Order via Escrow Service

Not exactly what you want? Post a quick Buying Request!

Sold By

Mr. harry's store

(Hong Kong)

100% Positive feedback

Detailed seller ratings

Visit Store

Contact Now

Esrcow Service

Place orders confidently and securely via it

Safe payments
Quick and easy transactions
Free service charges

Learn More >>

Previous Next

Products Upload time: 2013-06-21

From Other Seller

Part Number:IR2136J
US $0.99 - 3.20
Quantity:

piece

Product Summary

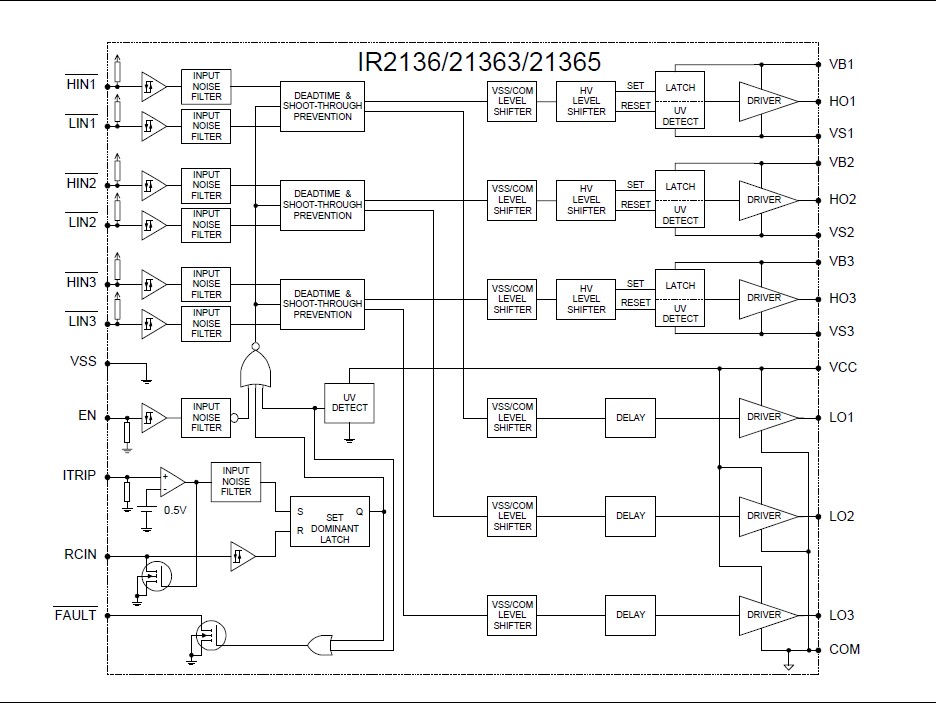

The IR2136J is a high votage, high speed power MOSFET and IGBT drivers with three independent high and low side referenced output channels for 3-phase applications. Proprietary HVIC technology enables ruggedized monolithic construction. Logic inputs are compatible with CMOS or LSTTL outputs, down to 3.3V logic. A current trip function which terminates all six outputs can be derived from an external current sense resistor. An enable function is available to terminate all six outputs simultaneously. An open-drain FAULT signal is provided to indicate that an overcurrent or undervoltage shutdown has occurred.

Parametrics

IR2136J absolute maximum ratings: (1)High side offset voltage: VB1,2,3 - 25 to VB1,2,3 + 0.3 V; (2)High side floating supply voltage: -0.3 to 625 V; (3)High side floating output voltage: VS1,2,3 - 0.3 to VB1,2,3 + 0.3 V; (4)Low side and logic fixed supply voltage: -0.3 to 25 V; (5)Logic ground: VCC - 25 to VCC + 0.3 V; (6)1,2,3 Low side output voltage: -0.3 to VCC + 0.3 V; (7)FAULT output voltage: VSS - 0.3 to VCC + 0.3 V; (8)Allowable offset voltage slew rate: 50 V/ns; (9)Package power dissipation TA ≤ +25°C (28 lead PDIP): 1.5 W; (10)Storage temperature: -55 to 150 ℃.

Features

IR2136J features: (1)Floating channel designed for bootstrap operation Fully operational to +600V; (2)Tolerant to negative transient voltage - dV/dt immune; (3)Gate drive supply range from 10 to 20V; (4)Undervoltage lockout for all channels; (5)Over-current shutdown turns off all six drivers; (6)Independent 3 half-bridge drivers; (7)Matched propagation delay for all channels; (8)Cross-conduction prevention logic.
