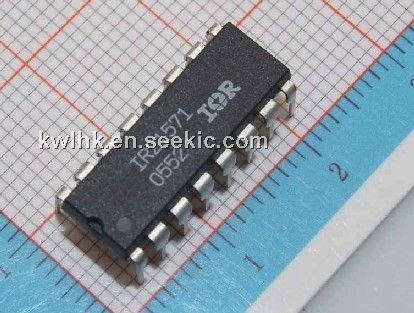

IR21571

ballast control IC, 600V, -500 to 500mA, DIP

Rated 5 Rating 5 | reviews | Write a review

Price:: US $1.13~1.96 / piece [Get Latest Price]

Reference price:

Qty (lots)	Price/lot
100 ~ 500 :	1.96 / Piece
500 ~ 1000 :	1.47 / Piece
1000 ~ 1500 :	1.13 / Piece

PartNumber:: IR21571

Brand:: International Rectifier - IR | Pack: DIP | D/C: 05+

Availability:: Supply Ability: 10000/Month Can Ship Immediately
Delivery: 10-15 Business Days (ships out within 3 Business days)

Quantity:: piece

Total Price:: US $0

Place Order via Escrow Service

Not exactly what you want? Post a quick Buying Request!

Sold By

Mr. harry's store

(Hong Kong)

100% Positive feedback

Detailed seller ratings

Visit Store

Contact Now

Esrcow Service

Place orders confidently and securely via it

Safe payments
Quick and easy transactions
Free service charges

Learn More >>

Previous Next

Products Upload time: 2013-08-02

From Other Seller

Part Number:IR21571
US $1.13 - 1.96
Quantity:

piece

Product Summary

The ir21571 is a fully integrated, fully protected 600V ballast control IC designed to drive all types of rapid start fluorescent lamp ballasts. Externally programmable of the ir21571 features such as preheat time & frequency, ignition ramp characteristics, and running mode operating frequency provide a high degree of flexibility for the ballast design engineer. The ir21571 is available in both 16 pin DIP and 16 pin narrow body SOIC packages.

Parametrics

ir21571 absolute maximum ratings: (1) (1) High side floating absolute voltage VB: -0.3 to 625V; (2) High side floating supply offset voltage Vs: VB-25 to VB+0.3V; (3) High side floating output voltage VHO: VS-0.3 to VB+0.3V; (4) Low side and logic fixed supply voltage: -0.3 to 25V; (5) Low side output voltage VLO: -0.3 to VCC +0.3V; (6)Allowable offset voltage slew rate dv/dt: -50 to 50V/ns; (7) Junction temperatue TJ: -55 to 150°C; (8) Storage temperature Ts: -55 to 150°C; (9) Lead temperature (soldering, 10 seconds) TL: 300°C.

Features

ir21571 features: (1) programmable preheat time&frequency; (2) programmable ignitio ramp; (3) protection from failure-to-strike; (4) lamp filament sensing&protection; (5) protection from operation below resonance; (6) protection from low-line condition; (7) internal 15.6V zener clamp diode on VCC; (8) Micropower startup (150uA) ; (9) latch immunity protection on all leads; (10) ESD protection on all leads.
