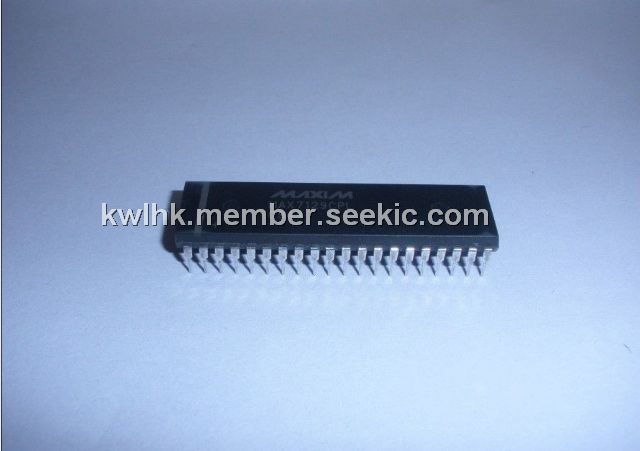

Product Summary
The MAX7129CPL is a high precision monolithic 4-1/2 digital A/D converter that directly drives a multipexed liquid crystal display. Using a novel “successive integration” technique, the MAX7129CPL has a ±20000 count resolution on both 200000V and 200.00mV ranges. The MAX7129CPL can be used for a wide range of precision digital voltmeter, multimeter and panelmeter applications.
Parametrics
MAX7129CPL absolute maximum ratings: (1)supply voltage:15V; (2)reference voltage:V+ to V-; (3)input voltage: V+ to V-; (4)VDISP:V+ to DGND-0.3V; (5)Digital input pins:DGND to V+; (6)analog input pins:V+ to V-; (7)power dissipation:1000mW; (8)operating temperature range:0 to +70℃; (9)storage temperature range:-65 to +160℃; (10)lead soldering temperature(10 sec.):300℃.
Features
MAX7129CPL features: (1)±19999 count resoultion; (2)10pA max input bias current; (3)onboard multiplexed LCD display driver 4-1/2 digits, 4 decimal points, 3 annunciators; (4)instant continuity detector; (5)low battery detector and indicator; (6)overrange/underrange outputs; (7)precise 10:1 range select; (8)10uV resolution; (9)significantly improved ESD protection; (10)monolithic, low power CMOS deign; (11)eliminates need for compensation capacitor.

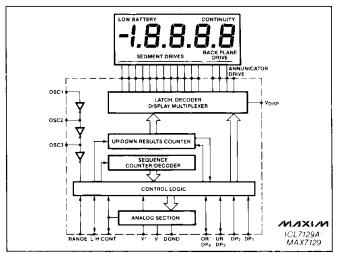

Diagrams
Image | Part No | Mfg | Description | Pricing (USD) |
Quantity | |||||||||||||
---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
MAX7129CPL |
Maxim Integrated Products |
LCD Drivers |
Data Sheet |
Negotiable |
|
|||||||||||||
MAX7129CPL+ |
Maxim Integrated Products |
LCD Drivers 4+ Digit ADC w/Mux'd LCD Driver |
Data Sheet |
|
|
