Product Summary

The IRFPG40 is a 4.3A, 1000V, 3.500 Ohm, N-channel power MOSFET. It is designed for applications such as switching regulators, switching convertors, motor drivers, relay drivers, and drivers for high power bipolar switching transistors requiring high speed and low gate drive power.

Parametrics

IRFPG40 absolute maximum ratings: (1)Drain to Source Voltage: 1000 V; (2)Drain to Gate Voltage: 1000 V; (3)Continuous Drain Current: 4.3 A; (4)Pulsed Drain Current: 17 A; (5)Gate to Source Voltage: ±20 V; (6)Maximum Power Dissipation: 150 W; (7)Linear Derating Factor: 1.2 W/ °C; (8)Single Pulse Avalanche Energy Rating: 490 mJ; (9)Operating and Storage Temperature Range: -55 to 150°C.

Features

IRFPG40 features: (1)4.3A, 1000V; (2)rDS(ON) = 3.500Ω; (3)UIS SOA rating curve (single pulse); (4)-55°C to 150°C operating and storage temperature.

Diagrams

IRFPG40 block diagram

Image Part No Mfg Description Data Sheet Download Pricing
(USD)		 Quantity

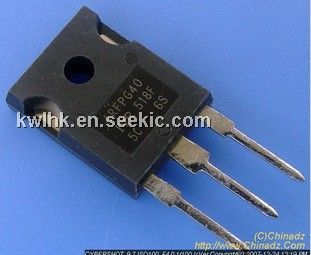

IRFPG40
IRFPG40
Vishay/Siliconix
MOSFET N-Chan 1000V 4.3 Amp
Data Sheet
0-331: $4.42
331-500: $4.06
500-1000: $3.89
