ISL6563IRZ-T

ISL6563IRZ-T, multi-phase PWM controller, 6.25V, QFN

Rated 5 Rating 5 | reviews | Write a review

Price:: US $0.82~3.24 / piece [Get Latest Price]

Reference price:

Qty (lots)	Price/lot
100 ~ 500 :	3.24 / Piece
500 ~ 1000 :	1.95 / Piece
1000 ~ 1500 :	0.82 / Piece

PartNumber:: ISL6563IRZ-T

Brand:: Intersil Corporation - Intersil | Pack: QFN | D/C: 09+

Availability:: Supply Ability: 10000/Month Can Ship Immediately
Delivery: 10-15 Business Days (ships out within 3 Business days)

Quantity:: piece

Total Price:: US $0

Place Order via Escrow Service

Not exactly what you want? Post a quick Buying Request!

Sold By

Mr. harry's store

(Hong Kong)

100% Positive feedback

Detailed seller ratings

Visit Store

Contact Now

Esrcow Service

Place orders confidently and securely via it

Safe payments
Quick and easy transactions
Free service charges

Learn More >>

Previous Next

Products Upload time: 2013-06-16

From Other Seller

Part Number:ISL6563IRZ-T
US $0.82 - 3.24
Quantity:

piece

Product Summary

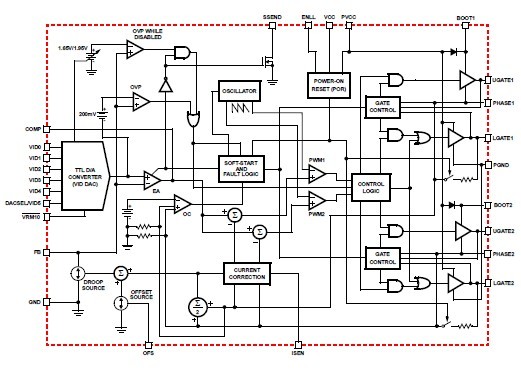

The ISL6563IRZ-T is a multi-phase PWM controller. The ISL6563CR two-phase PWM control IC provides a precision voltage regulation system for advanced microprocessors. Like other Intersil multiphase controllers, the ISL6563CR uses cost and space-saving rDS(ON) sensing for channel current balance, dynamic voltage positioning, and overcurrent protection.

Parametrics

ISL6563IRZ-T absolute maximum ratings: (1)Supply Voltage, VCC, PVCC: -0.3V to +6.25V; (2)Absolute Boot Voltage, VBOOT: PGND - 0.3V to PGND + 27V; (3)Phase Voltage, VPHASE: VBOOT - 7V to VBOOT + 0.3V; (4)Upper Gate Voltage, VUGATE: VPHASE - 0.3V to VBOOT + 0.3V; (5)Lower Gate Voltage, VLGATE: GND - 0.3V to VCC + 0.3V; (6)Input, Output, or I/O Voltage: GND - 0.3V to VCC + 0.3V; (7)ESD Classification: HBM Class 1 JEDEC STD.

Features

ISL6563IRZ-T features: (1)Integrated Two-Phase Power Conversion; (2)Both 5V and 12V Conversion; (3)Precision Channel Current Sharing - Loss Less Current Sampling - Uses rDS(ON); (4)Precision Output Voltage Regulation - 1% System Accuracy Over Temperature (Commercial); (5)Microprocessor Voltage Identification Inputs - Up to a 6-Bit DAC; (6)Fast Transient Recovery Time; (7)Overcurrent Protection; (8)Improved, Multi-tiered Overvoltage Protection; (9)Capable of Start-up into a Pre-Charged Output.
