Product Summary
The KM4200IC8 is a dual, low cost, voltage feedback amplifier. This amplifier is designed to operate on +2.7V, +5V, or ±2.5V supplies. The input voltage range extends 300mV below the negative rail and 1.2V below the positive rail. The KM4200IC8 is also available. Applications are (1)A/D driver; (2)Active filters; (3)CCD imaging systems; (4)CD/DVD ROM; (5)Coaxial cable drivers; (6)High capacitive load driver; (7)Portable/battery-powered applications; (8)Twisted pair driver; (9)Video drive.
Parametrics
KM4200IC8 absolute maximum ratings: (1)supply voltage: 0 to +6V; (2)maximum junction temperature: +175°C; (3)storage temperature range: -65°C to +150°C; (4)lead temperature (10 sec): +300°C; (5)operating temperature range (recommended): -40°C to +85°C; (6)input voltage range: +Vs +0.5V; -Vs -0.5V; (7)internal power dissipation: see power derating curves.
Features
KM4200IC8 features: (1)260MHz bandwidth; (2)Fully specified at +2.7V and +5V supplies; (3)Output voltage range: 0.036V to 4.953V; Vs = +5; RL = 2kΩ; (4)Input voltage range: -0.3V to +3.8V; Vs = +5; (5)145V/μs slew rate; (6)4.2mA supply current per amplifier; (7)±55mA linear output current; (8)±85mA short circuit current; (9)Directly replaces AD8052 and AD8042 in single supply applications; (10)Small package options (SOIC and MSOP).

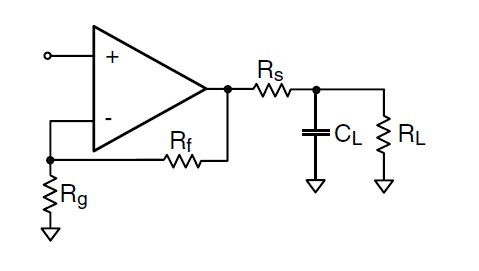

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 KM4200IC8 |
Fairchild Semiconductor |
High Speed Operational Amplifiers SOIC-8 |
Data Sheet |
Negotiable |
|
||||||||||||
|
KM4200IC8TR3 |
Fairchild Semiconductor |
Operational Amplifiers - Op Amps Dual RRO amplifier 26Mhz |
Data Sheet |
|
|
||||||||||||
 |
KM4200IC8TR3_NL |
Fairchild Semiconductor |
High Speed Operational Amplifiers |
Data Sheet |
Negotiable |
|
||||||||||||
|
KM4200IC8TR3_Q |
Fairchild Semiconductor |
Operational Amplifiers - Op Amps Dual RRO amplifier 26Mhz |
Data Sheet |
Negotiable |
|
||||||||||||
