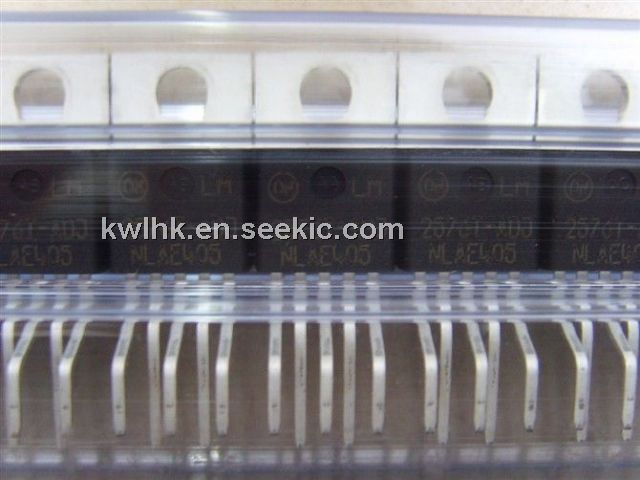

Product Summary
The LM2576TV-ADJ is a step-down voltage regulator ideally suited for easy and convenient design of a switching regulator (buck converter). All circuits of this series are capable of driving a 3.0 A load with excellent line and load regulation. The LM2576TV-ADJ is available in fixed output voltages of 3.3 V, 5.0 V, 12 V, 15 V, and an adjustable output version. The regulator was designed to minimize the number of external components to simplify the power supply design. Standard series of inductors optimized for use with the LM2576TV-ADJ are offered by several different inductor manufacturers. The applications of the LM2576TV-ADJ include Simple High-Efficiency Step-Down (Buck) Regulator, Efficient Pre-Regulator for Linear Regulators, On-Card Switching Regulators, Positive to Negative Converter (Buck-Boost), Negative Step-Up Converters, Power Supply for Battery Chargers.
Parametrics
LM2576TV-ADJ absolute maximum ratings: (1)Maximum Supply Voltage, Vin: 45 V; (2)ON/OFF Pin Input Voltage: -0.3 V ≤ V ≤ +Vin V; (3)Output Voltage to Ground (Steady-State): -1.0 V; (4)Power Dissipation, Case 314B and 314D (TO.220, 5.Lead), PD: Internally Limited W; (5)Minimum ESD Rating (Human Body Model: C = 100 pF, R = 1.5 kΩ): 2.0 kV; (6)Storage Temperature Range, Tstg: -65 to +150℃; (7)Lead Temperature (Soldering, 10 seconds): 260℃; (8)Maximum Junction Temperature, TJ: 150℃.
Features
LM2576TV-ADJ features: (1)3.3 V, 5.0 V, 12 V, 15 V, and Adjustable Output Versions; (2)Adjustable Version Output Voltage Range, 1.23 to 37 V ±4% Maximum Over Line and Load Conditions; (3)Guaranteed 3.0 A Output Current; (4)Wide Input Voltage Range; (5)Requires Only 4 External Components; (6)52 kHz Fixed Frequency Internal Oscillator; (7)TTL Shutdown Capability, Low Power Standby Mode; (8)High Efficiency; (9)Uses Readily Available Standard Inductors; (10)Thermal Shutdown and Current Limit Protection; (11)Moisture Sensitivity Level (MSL) Equals 1; (12)Pb-Free Packages are Available.

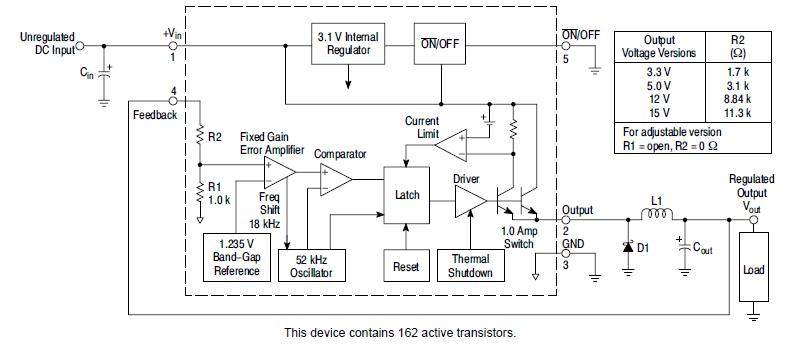

Diagrams
Image | Part No | Mfg | Description | ![]() |
Pricing (USD) |
Quantity | ||||||||||||
---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
![]() |
![]() LM2576TV-ADJ |
![]() ON Semiconductor |
![]() Switching Converters, Regulators & Controllers 3A 1.23-37V ADJ Buck |
![]() Data Sheet |
![]() Negotiable |
|
||||||||||||
![]() |
![]() LM2576TV-ADJG |
![]() ON Semiconductor |
![]() Switching Converters, Regulators & Controllers 3A 1.23-37V ADJ Buck PWM |
![]() Data Sheet |
![]()
|
|
