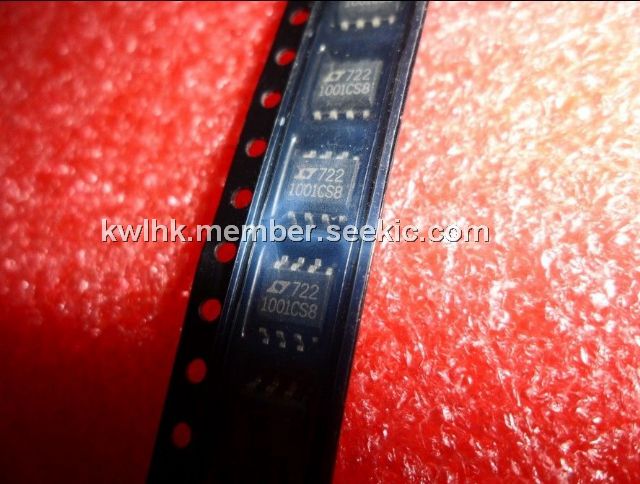

Product Summary

The LT1001 significantly advances the state-of-the-art of precision operational amplifiers. In the design,processing, and testing of the device, particular attention has been paid to the optimization of the entire distribution of several key parameters. Consequently,the specifications of the lowest cost, commercial tem-perature device, the LT1001C, have been dramaticallyimproved when compared to equivalent grades of com-peting precision amplifiers.

Parametrics

The absolute maximum ratings of LT1001CS8 are
(1)Supply Voltage: ±22V;
(2)Differential Input Voltage: ±30V;
(3)Input Voltage ±22V;
(4)Output Short Circuit Duration: Indefinite;
(5)Operating Temperature Range:
LT1001AC/LT1001C: 0°C to 125°C,
Storage: All Devices: – 65°C to 150°C;
(6)Lead Temperature (Soldering, 10 sec): 300°C

Features

The features of LT1001CS8 can be summarized as
(1)Guaranteed Low Offset Voltage: LT1001C 60μV max;
(2)Guaranteed Low Drift: LT1001C 1.0μV/°C max;
(3)Guaranteed Low Bias Current: LT1001C 4nA max;
(4)Guaranteed CMRR: LT1001C 110dB min;
(5)Guaranteed PSRR: LT1001C106dB min;
(6)Low Power Dissipation: LT1001C 80mW max;
(7)Low Noise 0.3μVP-P

Diagrams

<P><IMG alt="LT1001CS8 Pin Configuration" src="http://www.seekic.com/uploadfile/ic-mfg/2012710195155368.jpg" border=0></P>

Image Part No Mfg Description Data Sheet Download Pricing
(USD)		 Quantity
LT1001CS8
LT1001CS8

IC PRECISION OP-AMP SINGLE 8SOIC
Data Sheet
0-3100: $1.29
LT1001CS8#PBF
LT1001CS8#PBF

IC PRECISION OP-AMP SINGLE 8SOIC
Data Sheet
0-1: $2.47
1-25: $1.64
25-100: $1.29
LT1001CS8#TR
LT1001CS8#TR

IC OP AMP PRECISION 8SOIC
Data Sheet
0-5000: $1.32
LT1001CS8#TRPBF
LT1001CS8#TRPBF

IC PRECISION OP-AMP SINGLE 8SOIC
Data Sheet
0-2500: $1.32
