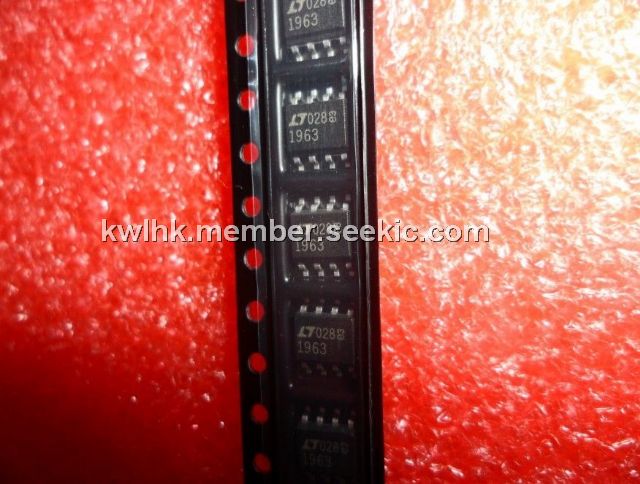

LT1963ES8

low dropout regulator, 1.5A, 340mV, 8SOIC, LT1963ES8, Linear Technology

Rated 5 Rating 5 | reviews | Write a review

Price:: US $0.01~20.00 / piece [Get Latest Price]

Reference price:

Qty (lots)	Price/lot
	US $0.01~20.00

PartNumber:: LT1963ES8

Brand:: Linear Technology - Linear | Pack: SOP | D/C: 00+

Availability:: Supply Ability: 10000/Week Can Ship Immediately
Delivery: 10-15 Business Days (ships out within 3 Business days)

Quantity:: piece

Total Price:: US $0

Place Order via Escrow Service

Sold By

Mr. harry's store

(Hong Kong)

add to my favourite

100% Positive feedback

Detailed seller ratings

Visit Store

Contact Now

Esrcow Service

Place orders confidently and securely via it

Safe payments
Quick and easy transactions
Free service charges

Learn More >>

Previous Next

Products Upload time: 2012-05-11

From Other Seller

Part Number:LT1963ES8
US $0.01 - 20.00
HEF4093BT

US $0.15 - 1.20 / Piece
(0) Remove
IRF9540NPBF

US $0.50 - 3.20 / Piece
(0) Remove
Quantity:

piece

Product Summary

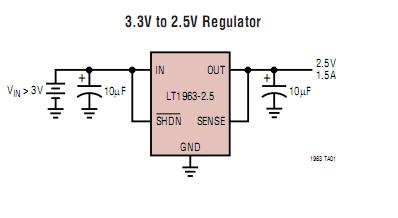

The LT1963ES8 is a low dropout regulator. It is optimized for fast transient response. The device is capable of supplying 1.5A of output current with a dropout voltage of 340mV. Quiescent current is well controlled; it does not rise in dropout as it does with many other regulators. In addition to fast transient response, the LT1963ES8 regulators have very low output noise which makes them ideal for sensitive RF supply applications. The applications of the LT1963ES8 are 3.3V to 2.5V Logic Power Supplies, Post Regulator for Switching Supplies.

Parametrics

LT1963ES8 absolute maximum ratings: (1)IN Pin Voltage:±20V; (2)OUT Pin Voltage:±20V; (3)Input to Output Differential Voltage:±20V; (4)SENSE Pin Voltage:±20V; (5)ADJ Pin Voltage:±7V; (6)SHDN Pin Voltage:±20V; (7)Output Short-Circuit Duration: Indefinite; (8)Operating Junction Temperature Range:–45℃ to 125℃; (9)Storage Temperature Range:–65℃ to 150℃; (10)Lead Temperature (Soldering, 10 sec):300℃.

Features

LT1963ES8 features: (1)Optimized for Fast Transient Response; (2)Output Current: 1.5A; (3)Dropout Voltage: 340mV; (4)Low Noise: 40μVRMS (10Hz to 100kHz); (5)1mA Quiescent Current; (6)No Protection Diodes Needed; (7)Controlled Quiescent Current in Dropout; (8)Fixed Output Voltages: 1.5V, 1.8V, 2.5V, 3.3V; (9)Adjustable Output from 1.21V to 20V; (10)＜1μA Quiescent Current in Shutdown; (11)Stable with 10μF Output Capacitor; (12)Reverse Battery Protection; (13)No Reverse Current; (14)Thermal Limiting.
