Product Summary
The LT3022EMSE is a low dropout linear regulator. The device can be used in (1)High Efficiency Linear Regulators; (2)Battery-Powered Systems; (3)Logic Supplies; (4)Post Regulator for Switching Supplies; (5)Wireless Modems; (6)FPGA Core Supplies.
Parametrics
LT3022EMSE absolute maximum ratings: (1)IN Pin:±10V; (2)OUT Pin Voltage:±10V; (3)Input-to-Output Differential Voltage:±10V; (4)ADJ Pin Voltage:±10V; (5)SHDN Pin Voltage:±10V; (6)Output Short-Circuit Duration: Indefinite; (7)Operating Junction Temperature Range: –40°C to 125°C; (8)Storage Temperature Range:–65°C to 150°C; (9)Lead Temperature (Soldering, 10 sec) MSOP Package: 300°C.
Features
LT3022EMSE features: (1)VIN Range: 0.9V to 10V; (2)Dropout Voltage: 145mV Typical; (3)Output Current: 1A; (4)Adjustable Output (VREF = VOUT(MIN) = 200mV); (5)Stable with Low ESR, Ceramic Output Capacitors (10μF Minimum); (6)0.05% Typical Load Regulation from 1mA to 1A; (7)Quiescent Current: 400μA Typical; (8)7.5μA Typical Quiescent Current in Shutdown; (9)Current Limit Protection; (10)Reverse-Battery Protection with No Reverse Current; (11)Thermal Limiting with Hysteresis; (12)16-Lead (5mm × 3mm) DFN and MSOP Packages.
Diagrams

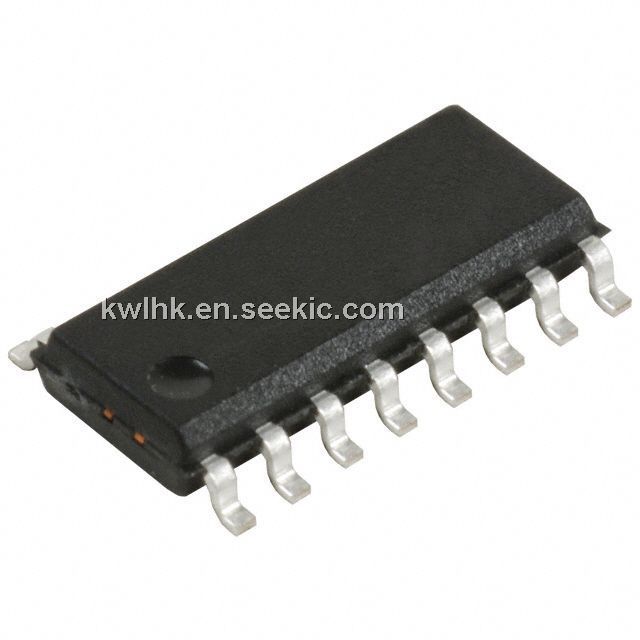

| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 LT3022EMSE#PBF |
|
IC REG LDO ADJ 1A 16MSOP |
Data Sheet |
|
|
||||||||||
|
LT3022EMSE#TRPBF |
|
IC REG LDO ADJ 1A 16MSOP |
Data Sheet |
|
|
||||||||||
|
LT3022EMSE-1.5#TRPBF |
|
IC REG LDO 1.5V 1A 16-MSOP |
Data Sheet |
|
|
||||||||||
|
LT3022EMSE-1.2#PBF |
|
IC REG LDO 1.2V 1A 16MSOP |
Data Sheet |
|
|
||||||||||
|
LT3022EMSE-1.2#TRPBF |
|
IC REG LDO 1.2V 1A 16-MSOP |
Data Sheet |
|
|
||||||||||
|
LT3022EMSE-1.5#PBF |
|
IC REG LDO 1.5V 1A 16MSOP |
Data Sheet |
|
|
||||||||||
|
LT3022EMSE-1.8#PBF |
|
IC REG LDO 1.8V 1A 16MSOP |
Data Sheet |
|
|
||||||||||
|
LT3022EMSE-1.8#TRPBF |
|
IC REG LDO 1.8V 1A 16-MSOP |
Data Sheet |
|
|
||||||||||
