Product Summary
The M27C512-15F6 is a 512 Kbit EPROM offered in the two ranges UV (ultra violet erase) and OTP (one time programmable). It is ideally suited for applications where fast turn-around and pattern experimentation are important requirements and is organized as 65536 by 8 bits. The M27C512-15F6 (window ceramic frit-seal package) has transparent lid which allows the user to expose the chip to ultraviolet light to erase the bit pattern. A new pattern can then be written to the device by following the programming procedure.
Parametrics
M27C512-15F6 absolute maximum ratings: (1)TA, Ambient Operating Temperature: -40 to 125℃; (2)TBIAS, Temperature Under Bias: -50 to 125℃; (3)TSTG, Storage Temperature: -65 to 150℃; (4)TLEAD, Lead Temperature during Soldering (note 1)℃; (5)VIO(2), Input or Output Voltage (except A9): -2 to 7 V; (6)VCC, Supply Voltage: -2 to 7 V; (7)VA9(2), A9 Voltage: -2 to 13.5 V; (8)VPP, Program Supply Voltage: -2 to 14 V.
Features
M27C512-15F6 features: (1)5V ± 10% Supply voltage in read operation; (2)Access time: 45ns; (3)Low power “CMOS” consumption: Active Current 30mA; Standby Current 100μA; (4)Programming voltage: 12.75V ± 0.25V; (5)Programming times of AROUND 6sec.; (6)Electronic signature, Manufacturer Code: 20h; Device Code: 3Dh; (7)PACKAGES, Lead-Free Versions.

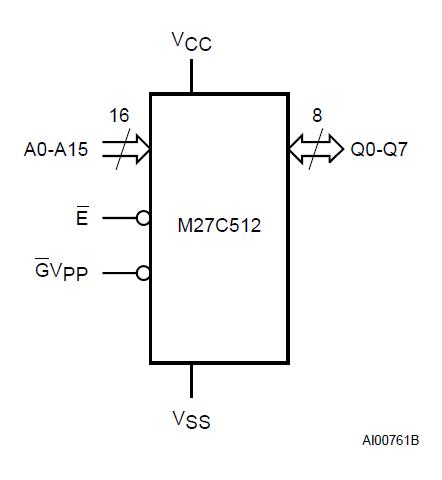

Diagrams
<
