Product Summary

The M52749FP is a semiconductor integrated circuit for CRT display monitor. It includes OSD Blanking,OSD Mixing,Retrace Blanking,Wide Band Amplifier,Brightness Control. Main/Sub Contrast and OSD AdjustFunction.

Parametrics

M52749FP absolute maximum ratings: (1)Supply voltage: 13.0 V; (2)Power dissipation: 2900 mW; (3)Ambient temperature: -20~+75 ℃; (4)Storage temperature: -40~+150 ℃; (5)Recommended supply 12: 12.0 V; (6)voltage range12: 11.5~12.5 (TYP 12.0)V.

Features

M52749FP features: (1)Frequency Band Width: RGB 180MHz(3Vp-p at -3dB); (2)Main Contrast , Sub Contrast , OSD Adjust and 5ch D/A OUT can be controlled by I2C Bus.

Diagrams

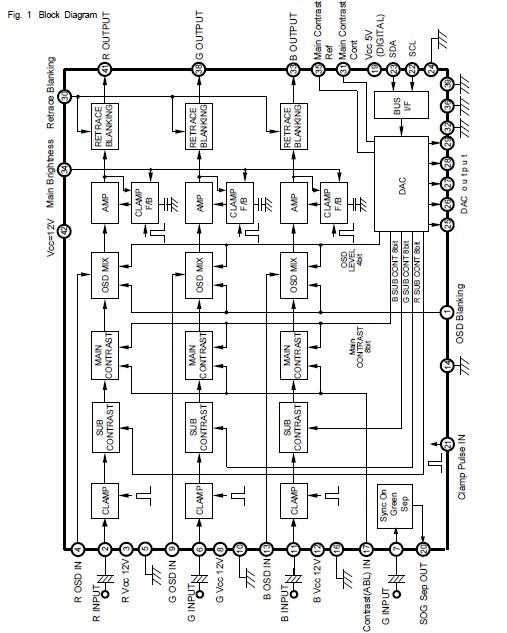

M52749FP pin connection
