Product Summary

The M5-320/192-7SAC-10SAI consists of a broad range of high-density and high-I/O Complex Programmable Logic Device (CPLD). The M5-320/192-7SAC-10SAI architecture yields fast speeds at high CPLD densities, low power, and supports additional features such as in-system programmability, Boundary Scan testability, and advanced clocking options. The M5-320/192-7SAC-10SAI offers 5-V (M5-xxx) and 3.3-V (M5LV-xxx) operation.

Parametrics

M5-320/192-7SAC-10SAI absolute maximum ratings: (1)Storage Temperature: -65°C to +150°C; (2)Device Junction Temperature: +130°C or +150°C; (3)Supply Voltage with Respect to Ground: -0.5 V to +7.0 V; (4)DC Input Voltage: -0.5 V to 5.5 V; (5)Static Discharge Voltage: 2000 V; (6)Latchup Current (-40°C to +85°C): 200 mA.

Features

M5-320/192-7SAC-10SAI features: (1)3.3-V & 5-V JEDEC-compliant operations; (2)IEEE 1149.1 compliant for boundary scan testing; (3)3.3-V & 5-V in-system programmable via IEEE 1149.1 Boundary Scan Test Access Port; (4)PCI compliant (-5/-6/-7/-10/-12 speed grades); (5)Safe for mixed supply voltage system design; (6)Bus-Friendly Inputs & I/Os; (7)Individual output slew rate control; (8)Hot socketing; (9)Programmable security bit; (10)Supports HDL design methodologies with results optimized for MACH 5 devices; (11)Flexibility to adapt to user requirements; (12)Software partnerships that ensure customer success.

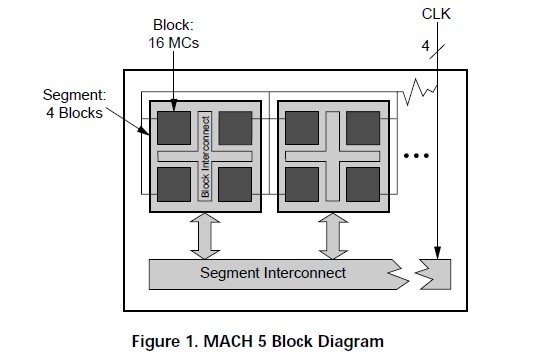

Diagrams
