Product Summary
The M82C55A-2V is a CMOS programmable peripheral interface. The M82C55A-2V operates as high speed and on low power consumption due to 3m silicon gate CMOS technology. It is the best fit as an I/O port in a system which employs the 8-bit parallel processing MSM80C85AH CPU. This device has 24-bit I/O pins equivalent to three 8-bit I/O ports and all inputs/outputs are TTL interface compatible.
Parametrics
M82C55A-2V absolute maximum ratings: (1)Supply Voltage: -0.5 to +7 V; (2Input Voltage: -0.5 to VCC +0.5 V; (3)Output Voltage: -0.5 to VCC +0.5 V; (4)Storage Temperature: -55 to +150°C; (5)Power Dissipation: 1.0 W; (6)Storage Temperature: -65 to 150 °C; (7)Maximum Lead Temperature (Soldering 10s): 300°C; (8)Standby current: 1uA; (9)Stand by & mute control voltage: 7.0 V.
Features
M82C55A-2V features: (1)High speed and low power consumption due to 3m silicon gate CMOS technology; (2)3 V to 6 V single power supply; (3)Full static operation; (4)Programmable 24-bit I/O ports; (5)Bidirectional bus operation (Port A); (6)Bit set/reset function (Port C); (7)TTL compatible; (8)Compatible with 8255A-5.

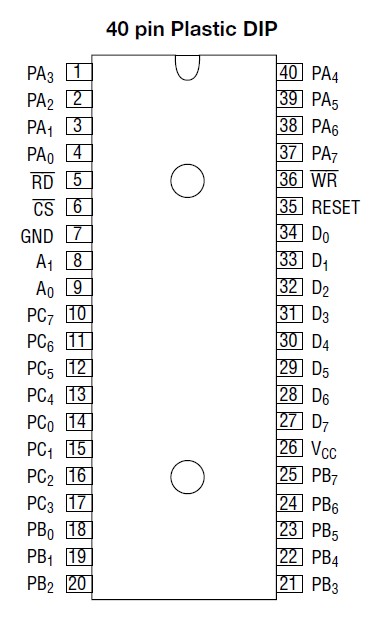

Diagrams
