Product Summary

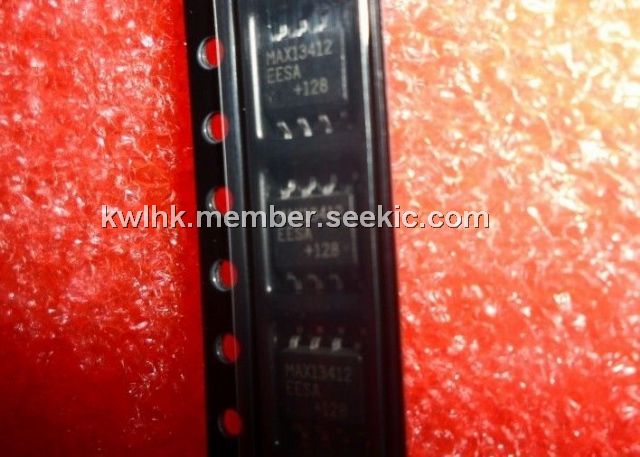

The MAX13412EESA is a half-duplex RS-485-/RS-422-compatible transceiver optimized for isolated applications. The device features an internal low-dropout regulator (LDO), one driver, and one receiver. The internal LDO allows the part to operate from an unregulated power supply of up to 28V. The AutoDirection feature reduces the number of optical isolators needed in isolated applications. Other features of the MAX13412EESA include enhanced ESD protection, fail-safe circuitry, slew-rate limiting, and fullspeed operation. The applications of the MAX13412EESA include: Isolated RS-485 Interfaces, Utility Meters, Industrial Equipment, Telecomm Equipment.
Parametrics
MAX13412EESA absolute maximum ratings: (1)VCC: -0.3V to +30V; (2)RE, DE/RE, DE, DI, RO, VREG: -0.3V to +6V; (3)A, B: -8V to +13V; (4)Continuous Power Dissipation (TA = +70℃) 8-Pin SO-EP (derate 19.2mW/℃ above +70℃): 1539mW; (5)Operating Temperature Range: -40℃ to +85℃; (6)Storage Temperature Range: -65℃ to +150℃; (7)Junction Temperature: +150℃; (8)θJA: 52.0℃/W; (9)θJC: 6.0℃/W; (10)Lead Temperature (soldering, 10s): +300℃.
Features
MAX13412EESA features: (1)Wide +6V to +28V Input Supply Range; (2)+5V Output Supplies Up to 20mA to External Circuitry; (3)Internal LDO; (4)Low 65μA (typ) Shutdown Supply Current; (5)Extended ESD Protection; (6)1/8-Unit Load, Allowing Up to 256 Transceivers on the Bus; (7)-40℃ to +85℃ Operating Temperature Range; (8)Fail-Safe; (9)Slew-Rate Limited and Full-Speed Versions; (10)Up to 16Mbps Data Rate on Full-Speed Versions.
Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 MAX13412EESA+ |
Maxim Integrated Products |
RS-485 Interface IC Ic Txrx RS-485 Ldo/Ctrl |
Data Sheet |
|
|
||||||||||||
|
MAX13412EESA+T |
Maxim Integrated Products |
RS-485 Interface IC Ic Txrx RS-485 Ldo/Ctrl |
Data Sheet |
|
|
||||||||||||
