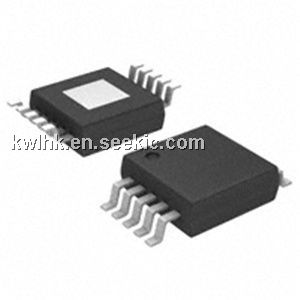

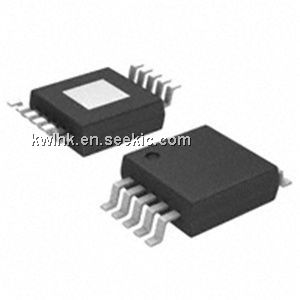

MAX1729EUB-T

MAX1729EUB-T, linear regulator, 20V, 60mA, 0.4μA, MSOP

Rated 5 Rating 5 | reviews | Write a review

Price:: US $1.00~3.00 / piece [Get Latest Price]

Reference price:

Qty (lots)	Price/lot
100 ~ 500 :	3.00 / Piece
500 ~ 1000 :	2.00 / Piece
1000 ~ 1500 :	1.00 / Piece

PartNumber:: MAX1729EUB-T

Brand:: Maxim Integrated Products - Maxim | Pack: MSOP | D/C: 05+

Availability:: Supply Ability: 10000/Month Can Ship Immediately
Delivery: 10-15 Business Days (ships out within 3 Business days)

Quantity:: piece

Total Price:: US $0

Place Order via Escrow Service

Not exactly what you want? Post a quick Buying Request!

Sold By

Mr. harry's store

(Hong Kong)

100% Positive feedback

Detailed seller ratings

Visit Store

Contact Now

Esrcow Service

Place orders confidently and securely via it

Safe payments
Quick and easy transactions
Free service charges

Learn More >>

Previous Next

Products Upload time: 2013-05-24

From Other Seller

Part Number:MAX1729EUB-T
US $1.00 - 3.00
Quantity:

piece

Product Summary

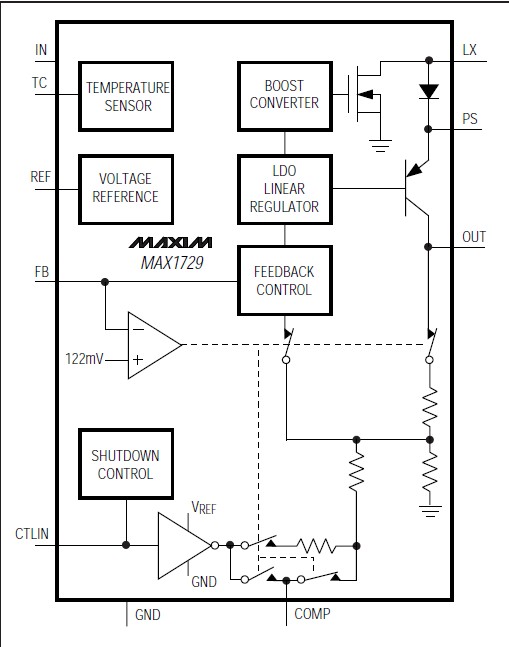

MAX1729EUB-T is a ECB and LCD display bias supply with accurate output voltage and temperature compensation. It provides step-up/step-down voltage conversion and reduces output ripple by using a step-up DC-DC converter followed by a linear regulator. Applications are (1)ECB Display Bias & Color Adjustment; (2)LCD Display Bias & Contrast Adjustment; (3)Cellular Phones; (4)Personal Digital Assistants.

Parametrics

MAX1729EUB-T absolute maximum ratings: (1)IN to GND: -0.3V to +6V; (2)LX, PS, OUT to GND: -0.3V to +20V; (3)CTLIN, FB, REF, COMP, TC to GND: -0.3V to (VIN + 0.3V); (4)LX to PS: -20V to +1.0V; (5)LX, PS, OUT Current: 60mA; (6)Continuous Power Dissipation (TA = +70°C)10-pin μMAX (derate 5.6mW/°C above +70°C): 444mW; (7)Operating Temperature Range: -40°C to +85°C; (8)Junction Temperature: +150°C; (9)Storage Temperature Range: -65°C to +160°C; (10)Lead Temperature (soldering, 10sec): +300°C.

Features

MAX1729EUB-T features: (1)High-Accuracy Reference Voltage (±1%); (2)±11ppm/°C Output Voltage Drift; (3)On-Chip Temperature Sensor Output; (4)Dynamic Control of the Output Voltage; (5)67μA Supply Current; (6)0.4μA Shutdown Current; (7)10-Pin μMAX Package (1.09mm max height); (8)Evaluation Kit Available.
