Product Summary
The MAX202EESE is a line driver/receiver designed for RS-232 and V.28 communications in harsh environments. Each transmitter output and receiver input is protected against ±15kV electrostatic discharge (ESD) shocks, without latchup. The various combinations of features are outlined in the Selector Guide. The applications of the MAX202EESE include Notebook, Subnotebook, and Palmtop Computers, Battery-Powered Equipment, Hand-Held Equipment.
Parametrics
MAX202EESE absolute maximum ratings: (1)VCC: -0.3V to +6V; (2)V+: (VCC - 0.3V) to +14V; (3)V-: -14V to +0.3V; (4)Input Voltages, T_IN: -0.3V to (V+ + 0.3V); R_IN: ±30V; (5)Output Voltages, T_OUT: (V- - 0.3V) to (V+ + 0.3V); R_OUT: -0.3V to (VCC + 0.3V); (6)Short-Circuit Duration, T_OUT: Continuous; (7)Operating Temperature Ranges: -40℃ to +85℃; (8)Storage Temperature Range: --65℃ to +165℃; (9)Lead Temperature (soldering, 10sec): +300℃.
Features
MAX202EESE features: (1)For Low-Voltage Applications, MAX3222E/MAX3232E/MAX3237E/MAX3241E/MAX3246E: ±15kV ESD-Protected Down to 10nA, +3.0V to +5.5V, Up to 1Mbps, True RS-232; (2)Transceivers (MAX3246E Available in a UCSP Package); (3)For Low-Power Applications, MAX3221/MAX3223/MAX3243: 1μA Supply; (4)Current, True +3V to +5.5V RS-232 Transceivers with Auto-Shutdown.; (5)For Space-Constrained Applications MAX3233E/MAX3235E: ±15kV ESD-Protected, 1μA, 250kbps, +3.0V/+5.5V, Dual RS-232 Transceivers with Internal Capacitors; (6)For Low-Voltage or Data Cable Applications MAX3380E/MAX3381E: +2.35V to +5.5V, 1μA, 2Tx/2Rx RS-232 Transceivers with ±15kV ESDProtected I/O and Logic Pins.

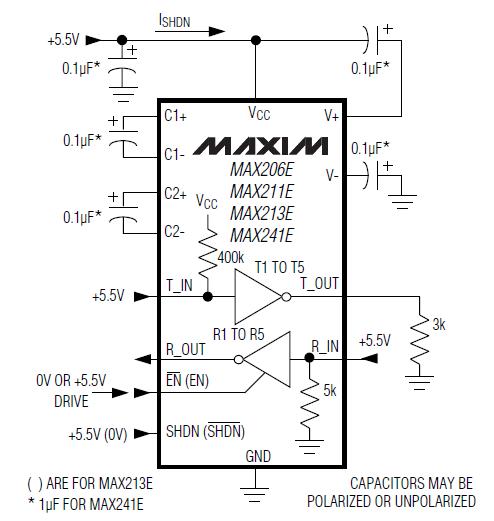

Diagrams
Image | Part No | Mfg | Description | ![]() |
Pricing (USD) |
Quantity | ||||||||||||
---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
![]() |
![]() MAX202EESE |
![]() Maxim Integrated Products |
![]() RS-232 Interface IC |
![]() Data Sheet |
![]() Negotiable |
|
||||||||||||
![]() |
![]() MAX202EESE+ |
![]() Maxim Integrated Products |
![]() RS-232 Interface IC 15kV ESD-Protected 5V RS232 Transceiver |
![]() Data Sheet |
![]()
|
|
||||||||||||
![]() |
![]() MAX202EESE+T |
![]() Maxim Integrated Products |
![]() RS-232 Interface IC 15kV ESD-Protected 5V RS232 Transceiver |
![]() Data Sheet |
![]()
|
|
||||||||||||
![]() |
![]() MAX202EESE-T |
![]() Maxim Integrated Products |
![]() RS-232 Interface IC |
![]() Data Sheet |
![]() Negotiable |
|
