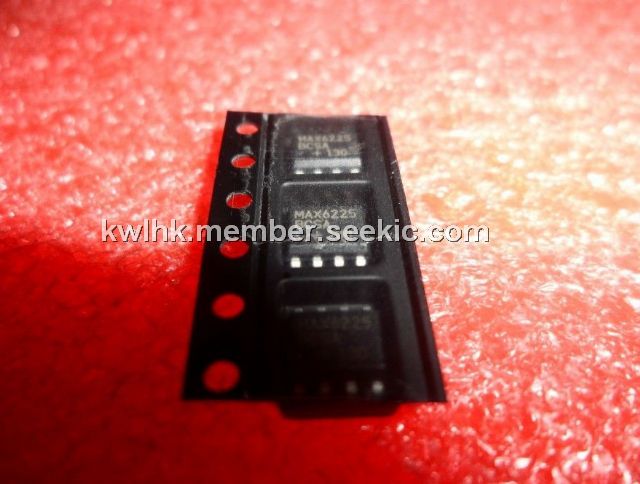

MAX6225BCSA

precision voltage reference, 2.5V, 8-SOIC, 15mA, 18mW, MAX6225BCSA

Rated 5 Rating 5 | reviews | Write a review

Price:: US $0.01~10.00 / piece [Get Latest Price]

Reference price:

Qty (lots)	Price/lot
	US $0.01~10.00

PartNumber:: MAX6225BCSA

Brand:: Maxim Integrated Products - Maxim | Pack: SOP | D/C: 11+

Availability:: Supply Ability: 10000/Week Can Ship Immediately
Delivery: 10-15 Business Days (ships out within 3 Business days)

Quantity:: piece

Total Price:: US $0

Place Order via Escrow Service

Sold By

Mr. harry's store

(Hong Kong)

add to my favourite

100% Positive feedback

Detailed seller ratings

Visit Store

Contact Now

Esrcow Service

Place orders confidently and securely via it

Safe payments
Quick and easy transactions
Free service charges

Learn More >>

Previous Next

Products Upload time: 2012-05-11

From Other Seller

Part Number:MAX6225BCSA
US $0.01 - 10.00
HCPL-7800A

US $2.50 - 4.10 / Piece
(0) Remove
2DI75D-050A

US $16.00 - 30.00 / Piece
(0) Remove
Quantity:

piece

Product Summary

The MAX6225BCSA is a low-noise, precision voltage reference with extremely low 1ppm/℃ temperature coefficients and excellent ±0.02% initial accuracy. The MAX6225BCSA features buried-zener technology for lowest noise performance. Load-regulation specifications are guaranteed for source and sink currents up to 15mA. Excellent line and load regulation and low output impedance at high frequency make the MAX6225BCSA ideal for high-resolution data-conversion systems up to 16 bits. It is used in High-Resolution Analog-to-Digital and Digital-to-Analog Converters, High-Accuracy Reference Standard, High-Accuracy Industrial and Process Control, Digital Voltmeters, ATE Equipment, Precision Current Sources.

Parametrics

MAX6225BCSA absolute maximum ratings: (1)IN: -0.3V to +40V; (2)OUT, TRIM:-0.3V to +12V; (3)NR: -0.3V to +6V; (4)OUT Short Circuit to GND Duration (VIN ≤ 40V): 5sec; (5)Continuous Power Dissipation (TA = +70℃) Plastic DIP (derate 9.09mW/℃ above +70℃): 727mW, SO (derate 5.88mW/℃ above +70℃): 471mW, CERDIP (derate 8.00mW/℃ above +70℃): 640mW; (6)Operating Temperature Ranges: 0℃ to +70℃; (7)Storage Temperature Range: -65℃ to +150℃; (8)Lead Temperature (soldering, 10sec): +300℃.

Features

MAX6225BCSA features: (1)Low 1.0ppm/℃ Temperature Coefficient; (2)Very Low 1.5μVp-p Noise (0.1Hz to 10Hz); (3)±0.02% Initial Accuracy; (4)±15mA Output Source and Sink Current; (5)Low, 18mW Power Consumption (MAX6225); (6)Industry-Standard Pinout; (7)Optional Noise Reduction and Voltage Trim; (8)Excellent Transient Response; (9)8-Pin SO Package Available; (10)Low 20ppm/1000h Long-Term Stability; (11)Stable for All Capacitive Loads.
