Product Summary
The MAX872ESA precision 2.5V micropower voltage reference consumes a maximum of only 10μA and operate from supply voltages up to 20V. The combination of ultra-low quiescent current and low 200mV dropout makes the MAX872ESA ideal for battery-powered equipment. It sources and sinks up to 500μA with only 200mV input voltage headroom, which makes the 2.5V MAX872ESA ideal for use with a 3V supply. The applications of it include: (1)Hand-Held Instruments; (2)Battery-Operated Equipment; (3)Power Supplies.
Parametrics
MAX872ESA absolute maxing ratings: (1)Supply Voltage: 24V; (2)Output Short-Circuit Duration: Continuous to Either Supply; (3)CCOMP Input: -0.3V to VOUT; (4)TRIM Input: -0.3V to (VIN + 0.3V); (5)TEMP Output: -0.3V to (VIN + 0.3V); (6)Continuous Power Dissipation (TA=+70℃) Plastic DIP (derate 9.09mW/℃ above +70℃): 727mW; SO (derate 5.88mW/℃ above +70℃): 471mW; (7)Operating Temperature Ranges MAX87_E: -40℃ to +85℃; (8)Storage Temperature Range: -65℃ to +150℃; (9)Junction Temperature Range (Tj): -65℃ to +160℃; (10)Lead Temperature (soldering, 10sec): +300℃.
Features
MAX872ESA features: (1)Output Voltage: 2.500V ±0.2%; (2)Wide Operating Voltage Range: 2.7V to 20V; (3)10μA Max Supply Current; (4)40ppm/℃ Max Drift Over Extended Temp. Range; (5)Line Regulation Over Temp.: 20μV/V; (6)Load Regulation Over Temp.: 0.6mV/mA Max; (7)±500μA Sink/Source Current.

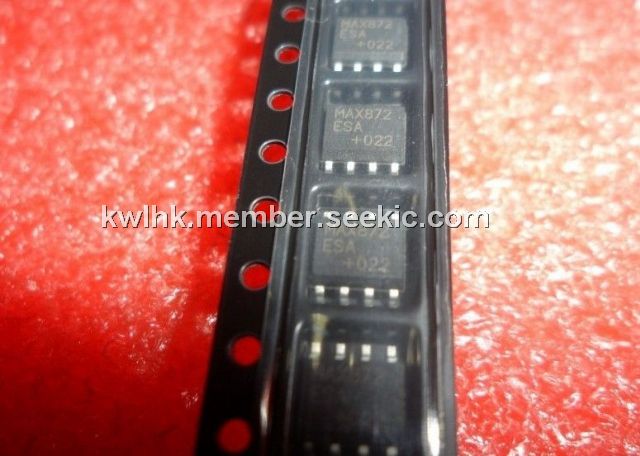

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||
|---|---|---|---|---|---|---|---|---|---|---|
 |
 MAX872ESA |
Maxim Integrated Products |
Voltage & Current References |
Data Sheet |
Negotiable |
|
||||
|
MAX872ESA+ |
Maxim Integrated Products |
Voltage & Current References |
Data Sheet |
Negotiable |
|
||||
 |
MAX872ESA+T |
Maxim Integrated Products |
Voltage & Current References |
Data Sheet |
Negotiable |
|
||||
|
MAX872ESA-T |
Maxim Integrated Products |
Voltage & Current References |
Data Sheet |
Negotiable |
|
||||
