Product Summary

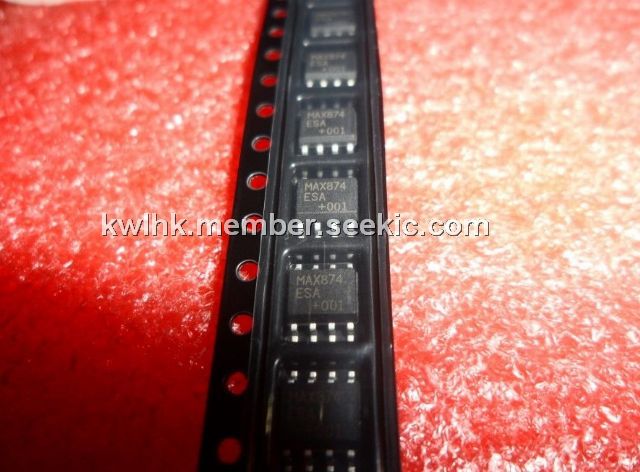

The MAX874ESA is a 2.5V and 4.096V micropower voltage reference. It consumes a maximum of only 10μA and operate from supply voltages up to 20V. The combination of ultra-low quiescent current and low 200mV dropout makes it ideal for battery-powered equipment. The MAX874ESA source and sink up to 500μA with only 200mV input voltage headroom, which makes it ideal for use with a 5V supply. Applications of the MAX874ESA include: Hand-Held Instruments, Battery-Operated Equipment, Power Supplies.
Parametrics
MAX874ESA absolute maximum ratings: (1)Supply Voltage: 24V; (2)CCOMP Input: -0.3V to VOUT; (3)TRIM Input: -0.3V to (VIN + 0.3V); (4)TEMP Output: -0.3V to (VIN + 0.3V); (5)Continuous Power Dissipation (TA = +70℃): Plastic DIP (derate 9.09mW/℃ above +70℃): 727mW; SO (derate 5.88mW/℃ above +70℃): 471mW; (6)Operating Temperature Ranges: 0℃ to +70℃; (7)Storage Temperature Range: -65℃ to +150℃; (8)Junction Temperature Range (Tj): -65℃ to +160℃; (9)Lead Temperature (soldering, 10sec): +300℃.
Features
MAX874ESA features: (1)Output Voltage: 4.096V ±0.2%; (2)Wide Operating Voltage Range: 4.3V to 20V; (3)10μA Max Supply Current; (4)40ppm/℃ Max Drift Over Extended Temp. Range; (5)Line Regulation Over Temp.: 75μV/V; (6)Load Regulation Over Temp.: 1.0mV/mA Max; (7)±500μA Sink/Source Current.
Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||
|---|---|---|---|---|---|---|---|---|---|---|
 |
 MAX874ESA |
Maxim Integrated Products |
Voltage & Current References |
Data Sheet |
Negotiable |
|
||||
|
MAX874ESA+ |
Maxim Integrated Products |
Voltage & Current References |
Data Sheet |
Negotiable |
|
||||
|
MAX874ESA+T |
Maxim Integrated Products |
Voltage & Current References |
Data Sheet |
Negotiable |
|
||||
|
MAX874ESA-T |
Maxim Integrated Products |
Voltage & Current References |
Data Sheet |
Negotiable |
|
||||
