Product Summary

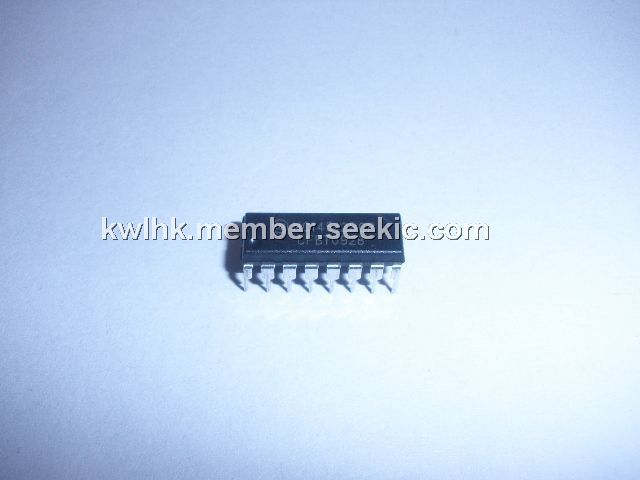

The MC14512BCP is an 8–channel data selector constructed with MOS P–channel and N–channel enhancement mode devices in a single monolithic structure. This data selector finds primary application in signal multiplexing functions. It may also be used for data routing, digital signal switching, signal gating, and number sequence generation.
Parametrics
MC14512BCP absolute maximum ratings: (1)DC Supply Voltage Range: –0.5 to +18.0 V; (2)Input or Output Voltage Range(DC or Transient):–0.5 to VDD + 0.5 V; (3)Input or Output Current(DC or Transient) per Pin: ±10 mA; (4)Power Dissipation,per Package (Note NO TAG): 500 mW; (5)Ambient Temperature Range: –55 to +125 ℃; (6)Storage Temperature Range: –65 to +150 ℃; (7)Lead Temperature (8–Second Soldering): 260 ℃.
Features
MC14512BCP features: (1)Diode Protection on All Inputs; (2)Single Supply Operation; (3)3–State Output (Logic 1, Logic 0, High Impedance); (4)Supply Voltage Range = 3.0 Vdc to 18 Vdc; (5)Capable of Driving Two Low–power TTL Loads or One Low-power Schottky TTL Load Over the Rated Temperature Range.
Diagrams
