Product Summary
The MC1496P is a Balanced Modulator. The device is designed for use where the output voltage is a product of an input voltage (signal) and a switching function (carrier). Typical applications of the MC1496P include suppressed carrier and amplitude modulation, synchronous detection, FM detection, phase detection, and chopper applications.
Parametrics
MC1496P absolute maximum ratings: (1)Applied Voltage, △V: 30 Vdc; (2)Differential Input Signal, V8 - V10: 5.0Vdc; V4 - V1: ±(5+I5Re)Vdc; (3)Maximum Bias Current, I5: 10 mA; (4)Thermal Resistance, Junction-to-Air, RθJA: 100℃/W; (5)Operating Ambient Temperature Range, TA: -40 to +125℃; (6)Storage Temperature Range, Tstg: -65 to +150℃; (7)Electrostatic Discharge Sensitivity (ESD), Human Body Model (HBM): 2000V; Machine Model (MM): 400V.
Features
MC1496P features: (1)Excellent Carrier Suppression -65 dB typ @ 0.5 MHz; -50 dB typ @ 10 MHz; (2)Adjustable Gain and Signal Handling; (3)Balanced Inputs and Outputs; (4)High Common Mode Rejection -85 dB Typical; (5)This Device Contains 8 Active Transistors; (6)Pb-Free Package is Available.

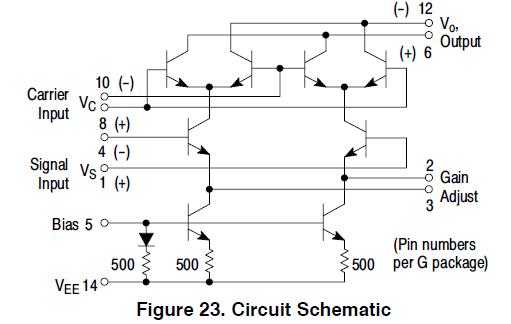

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 MC1496P |
ON Semiconductor |
Modulator / Demodulator Balanced Mod/DeMod |
Data Sheet |
Negotiable |
|
||||||||||||
|
MC1496P1G |
ON Semiconductor |
Modulator / Demodulator Balanced Mod/DeMod |
Data Sheet |
|
|
||||||||||||
|
MC1496PG |
ON Semiconductor |
Modulator / Demodulator Balanced Mod/DeMod |
Data Sheet |
|
|
||||||||||||
|
MC1496P1 |
ON Semiconductor |
Modulator / Demodulator Balanced Mod/DeMod |
Data Sheet |
Negotiable |
|
||||||||||||
