Product Summary

The MC33202 family of operational amplifiers support rail-to-rail operation on both the input and output. The inputs can be driven as high as 200 mV beyond the supply rails without phase reversal on the outputs, and the output can swing within 50 mV of each rail. This rail-to-rail operation enables the user to make full use of the support voltage range available. It is designed to work at very low support voltages (± 0.9 V) yet can operate with a supply of up to +12 Vand ground. Output current of MC33202 boosting techniques provide a high output current capability while keeping the drain current of the amplifier to a minimum. Also, the combination of low noise and distortion with a high slew rate and drive capability make this an ideal amplifier for audio applications.

Parametrics

The absolute maximum ratings of MC33202DR2G are
(1)Supply Voltage (VCC to VEE) VS:+13V;
(2)Input Differential Voltage Range VIDR:Note 1V;
(3)Common Mode Input Voltage Range (Note 2):VCMVCC + 0.5 V toVEE - 0.5 VV;
(4)Output Short Circuit Durationts :Note 3sec;
(5)Maximum Junction Temperature TJ: +150°C;
(6)Storage Temperature Tstg:- 65 to +150°C;
(7)Maximum Power Dissipation PD: Note 3mW

Features

The features of MC33202DR2G can be summarized as
(1)Low Voltage, Single Supply Operation(+1.8 V and Ground to +12 V and Ground);
(2)Input Voltage Range Includes both Supply Rails;
(3)Output Voltage Swings within 50 mV of both Rails;
(4)No Phase Reversal on the Output for Over-driven Input Signals;
(5)High Output Current (ISC = 80 mA, Typ);
(6)Low Supply Current (ID = 0.9 mA, Typ);
(7)600 W Output Drive Capability;
(8)Extended Operating Temperature Ranges(-40° to +105°C and -55° to +125°C);
(9)Typical Gain Bandwidth Product = 2.2 MHz;
(10)Pb-Free Packages are Available

Diagrams

<DIV><IMG alt="MC33202DR2G Pin Configuration" src="http://www.seekic.com/uploadfile/ic-mfg/2012730194547722.jpg" border=0></DIV>

Image Part No Mfg Description Data Sheet Download Pricing
(USD)
Quantity

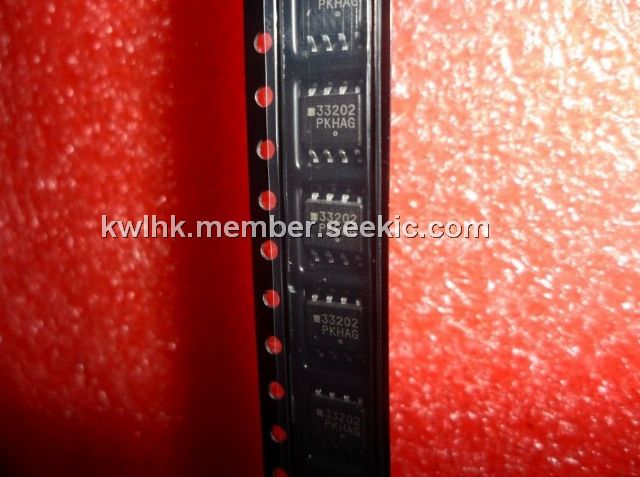

MC33202DR2G
MC33202DR2G

ON Semiconductor

Operational Amplifiers - Op Amps 1.8-12V Dual Rail to Rail -40 to 105 Cel

Data Sheet

0-1: $0.76
1-25: $0.60
25-100: $0.53
100-500: $0.41
