Product Summary

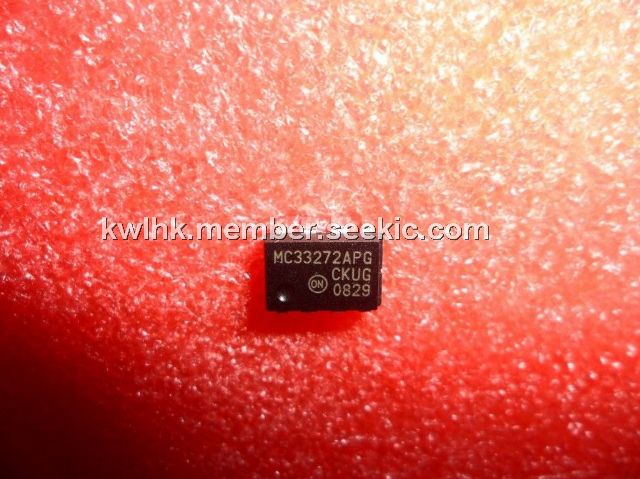

The MC33272APG is a high performance operational amplifier. The MC33272APG monolithic operational amplifier is quality fabricated with innovative Bipolar design concept. This dual and quad operational amplifier series incorporates Bipolar inputs along with a patented Zip–R–Trim element for input offset voltage reduction. The MC33272APG operational amplifier exhibits low input offset voltage and high gain bandwidth product. Dual–doublet frequency compensation of the MC33272APG is used to increase the slew rate while maintaining low input noise characteristics. Its all NPN output stage exhibits no deadband crossover distortion, large output voltage swing, and an excellent phase and gain margin.
Parametrics
MC33272APG absolute maximum ratings: (1)Supply Voltage VCC to VEE: +36 V; (2)Output Short Circuit Duration (Note 2) tSC: Indefinite sec; (3)Maximum Junction Temperature TJ: +150 ℃; (4)Storage Temperature Tstg: –60 to +150 ℃.
Features
MC33272APG features: (1)Input Offset Voltage Trimmed to 100 mV (Typ); (2)Low Input Bias Current: 300 nA; (3)Low Input Offset Current: 3.0 nA; (4)High Input Resistance: 16 MW; (5)Low Noise: 18 nV/ / Hz @ 1.0 kHz; (6)High Gain Bandwidth Product: 24 MHz @ 100 kHz; (7)High Slew Rate: 10 V/ms; (8)Power Bandwidth: 160 kHz; (9)Excellent Frequency Stability; (10)Unity Gain Stable: w/Capacitance Loads to 500 pF; (11)Large Output Voltage Swing: +14.1 V/ 4.6 V; (12)Low Total Harmonic Distortion: 0.003%.

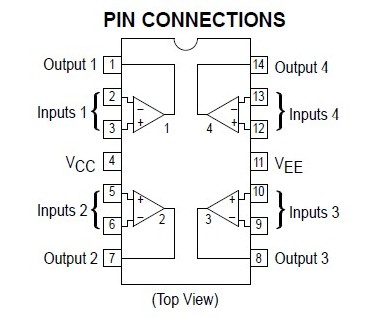

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 MC33272APG |
ON Semiconductor |
Operational Amplifiers - Op Amps 3-36V Dual Low Noise Low VIO Ind. Temp |
Data Sheet |
|
|
||||||||||||
