Product Summary
The MC6887P is the hex three-state buffer inverter.
Parametrics
MC6887P absolute maximum ratings: (1)Power supply voltage: 8.0 V; (2)Input voltage: 5.5V; (3)Operating ambient temperature range: 0 to 75 ℃; (4)Storage temperature range: -65 to +150 ℃; (5)Operating junction temperature: 150℃ (plastic package), 175℃ ( cermatic package).
Features
MC6887P features: (1)High speed-8.0 ns; (2)Three-state logic configuration; (3)Single +5V power supply requirement; (4)Compatible with 74LS logic or MC6800 Microprocessor systems; (5)High impedance PNP inputs assure minimal loading of the bus.

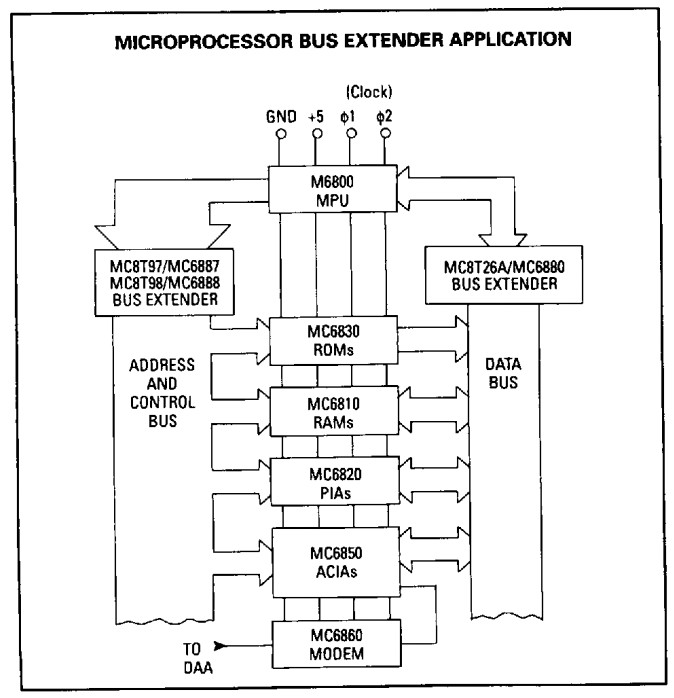

Diagrams
 |
