Product Summary

The MC74HC04A is a Hex inverter. The device consists of six three stage inverters.

Parametrics

MC74HC04A absolute maximum ratings: (1)DC supply voltage: -0.5 to +7.0 V; (2)DC input voltage: -0.5 to Vcc+0.5 V; (3)DC output voltage: -0.5 to Vcc+0.5 V; (4)DC input current: +/-20 mA; (5)DC output current: +/-25 mA; (6)DC supply current: +/-50 mA; (7)power dissipation: 750 mW; (8)storage temperature: -65 to +150 °C.

Features

MC74HC04A features: (1)Output Drive Capability: 10 LSTTL Loads; (2)Outputs Directly Interface to CMOS, NMOS and TTL; (3)Operating Voltage Range: 2.0 to 6.0 V; (4)Low Input Current: 1 μA; (5)High Noise Immunity Characteristic of CMOS Devices; (6)In Compliance With the JEDEC Standard No. 7A Requirements; (7)Chip Complexity: 36 FETs or 9 Equivalent Gates; (8)Pb-Free Packages are Available.

Diagrams

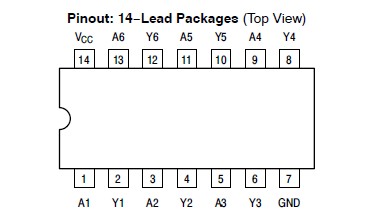

MC74HC04A pin connection

Image Part No Mfg Description Data Sheet Download Pricing
(USD)		 Quantity
MC74HC04A
MC74HC04A
Other

Data Sheet
Negotiable

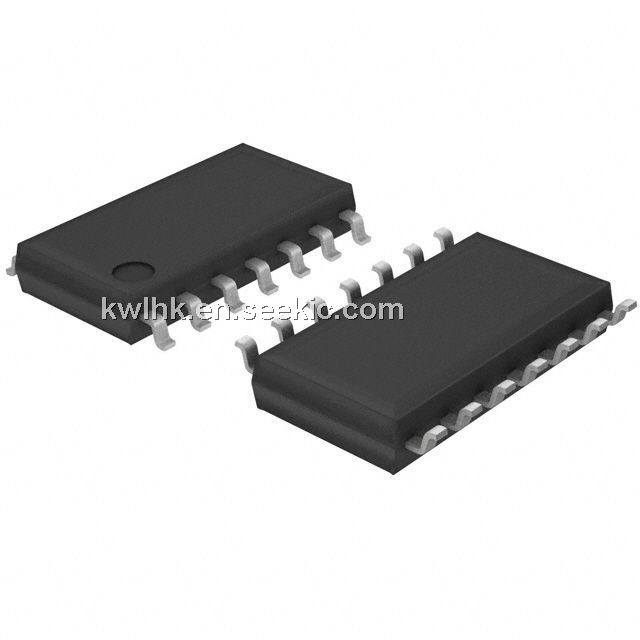

MC74HC04AD
MC74HC04AD
ON Semiconductor
Inverters 2-6V CMOS Hex
Data Sheet
Negotiable
MC74HC04ADG
MC74HC04ADG
ON Semiconductor
Inverters 2-6V CMOS Hex
Data Sheet
0-1: $0.17
1-25: $0.13
25-100: $0.09
100-500: $0.07
MC74HC04ADR2G
MC74HC04ADR2G
ON Semiconductor
Inverters 2-6V CMOS Hex
Data Sheet
0-1: $0.18
1-25: $0.14
25-100: $0.09
100-500: $0.08
MC74HC04ADTR2
MC74HC04ADTR2
ON Semiconductor
Inverters 2-6V CMOS Hex
Data Sheet
Negotiable
MC74HC04ADR2
MC74HC04ADR2
ON Semiconductor
Inverters 2-6V CMOS Hex
Data Sheet
Negotiable
MC74HC04ADTR2G
MC74HC04ADTR2G
ON Semiconductor
Inverters 2-6V CMOS Hex
Data Sheet
0-1: $0.14
1-25: $0.12
25-100: $0.09
100-500: $0.08
MC74HC04AFG
MC74HC04AFG
ON Semiconductor
Inverters 2-6V CMOS Hex
Data Sheet
0-1: $0.38
1-25: $0.32
25-100: $0.30
100-500: $0.25
