Product Summary
The MC74HC14A is a High–Performance Silicon–Gate CMOS. The MC74HC14A inputs are compatible with Standard CMOS outputs; with pullup resistors, they are compatible with LSTTL outputs. The MC74HC14A is useful to square up slow input rise and fall times. Due to hysteresis voltage of the Schmitt trigger, the MC74HC14A finds applications in noisy environments.
Parametrics
MC74HC14A absolute maximum ratings: (1)VCC DC Supply Voltage (Referenced to GND): -0.5 to + 7.0 V; (2)Vin DC Input Voltage (Referenced to GND): -0.5 to VCC + 0.5 V; (3)Vout DC Output Voltage (Referenced to GND): -0.5 to VCC + 0.5 V; (4)Iin DC Input Current, per Pin: 20 mA; (5)Iout DC Output Current, per Pin: 25 mA; (6)ICC DC Supply Current, VCC and GND Pins: 50 mA; (7)PD Power Dissipation in Still Air: 750 mW; (8)Tstg Storage Temperature: -65 to + 150°C; (9)TL Lead Temperature, 1 mm from Case for 10 Seconds Plastic DIP, SOIC or TSSOP Package: 260°C.
Features
MC74HC14A features: (1)Output Drive Capability: 10 LSTTL Loads; (2)Outputs Directly Interface to CMOS, NMOS and TTL; (3)Operating Voltage Range: 2 to 6V; (4)Low Input Current: 1mA; (5)High Noise Immunity Characteristic of CMOS Devices; (6)In Compliance With the JEDEC Standard No. 7A Requirements; (7)Chip Complexity: 60 FETs or 15 Equivalent Gates.

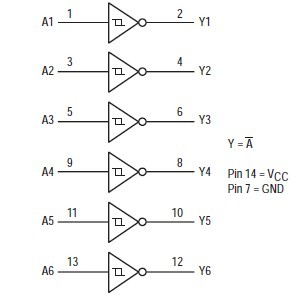

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 MC74HC14A |
Other |
|
Data Sheet |
Negotiable |
|
||||||||||||
 |
MC74HC14AD |
ON Semiconductor |
Inverters 2-6V Hex CMOS |
Data Sheet |
Negotiable |
|
||||||||||||
|
MC74HC14ADG |
ON Semiconductor |
Inverters 2-6V Hex CMOS Schmitt Trigger |
Data Sheet |
|
|
||||||||||||
|
MC74HC14ADR2G |
ON Semiconductor |
Inverters 2-6V Hex CMOS Schmitt Trigger |
Data Sheet |
|
|
||||||||||||
|
MC74HC14ADT |
ON Semiconductor |
Inverters 2-6V Hex CMOS |
Data Sheet |
Negotiable |
|
||||||||||||
|
MC74HC14ADR2 |
ON Semiconductor |
Inverters 2-6V Hex CMOS |
Data Sheet |
Negotiable |
|
||||||||||||
|
MC74HC14ADTR2G |
ON Semiconductor |
Inverters 2-6V Hex CMOS Schmitt Trigger |
Data Sheet |
|
|
||||||||||||
|
MC74HC14ADTG |
ON Semiconductor |
Inverters 2-6V Hex CMOS Schmitt Trigger |
Data Sheet |
|
|
||||||||||||
