Product Summary

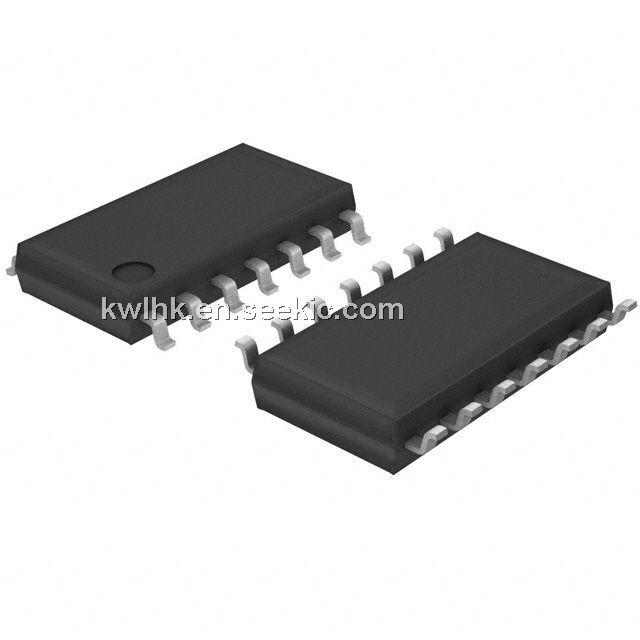

The MC74HC165A is a 8-bit serial or parallel-input/ serial-output shift register.
Parametrics
MC74HC165A absolute maximum ratings: (1)DC supply voltage: -0.5 to +7.0 V; (2)DC input voltage: -0.5 to Vcc+0.5 V; (3)DC output voltage: -0.5 to Vcc+0.5 V; (4)DC input current: +/-20 mA; (5)DC output current: +/-25 mA; (6)DC supply current: +/-50 mA; (7)power dissipation: 750 mW; (8)storage temperature: -65 to +150 °C.
Features
MC74HC165A features: (1)Output Drive Capability: 10 LSTTL Loads; (2)Outputs Directly Interface to CMOS, NMOS and TTL; (3)Operating Voltage Range: 2.0 to 6.0 V; (4)Low Input Current: 1 μA; (5)High Noise Immunity Characteristic of CMOS Devices; (6)In Compliance With the JEDEC Standard No. 7A Requirements; (7)Chip Complexity: 286 FETs or 71.5 Equivalent Gates; (8)Pb-Free Packages are Available.
Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 MC74HC165AD |
ON Semiconductor |
Counter Shift Registers 8bit Serial/Parallel |
Data Sheet |
Negotiable |
|
||||||||||||
|
MC74HC165ADG |
ON Semiconductor |
Counter Shift Registers 8bit Serial/Parallel In Serial Out |
Data Sheet |
|
|
||||||||||||
|
MC74HC165ADTR2G |
ON Semiconductor |
Counter Shift Registers 8bit Serial/Parallel In Serial Out |
Data Sheet |
|
|
||||||||||||
|
MC74HC165ADR2G |
ON Semiconductor |
Counter Shift Registers 8bit Serial/Parallel In Serial Out |
Data Sheet |
|
|
||||||||||||
|
MC74HC165ADTR2 |
ON Semiconductor |
Counter Shift Registers 8bit Serial/Parallel |
Data Sheet |
Negotiable |
|
||||||||||||
|
MC74HC165ADR2 |
ON Semiconductor |
Counter Shift Registers 8bit Serial/Parallel |
Data Sheet |
Negotiable |
|
||||||||||||
|
MC74HC165AFG |
ON Semiconductor |
Counter Shift Registers 8bit Serial/Parallel In Serial Out |
Data Sheet |
|
|
||||||||||||
|
MC74HC165ANG |
ON Semiconductor |
Counter Shift Registers 8bit Serial/Parallel In Serial Out |
Data Sheet |
|
|
||||||||||||
