Product Summary

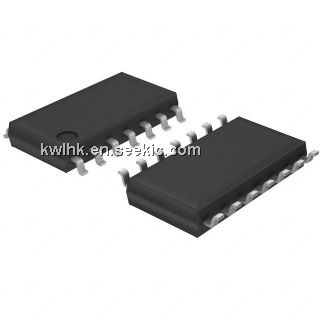

The MC74HC4538AD is a dual precision monostable multivibrator. The device has a reset function which forces the Q output low and the Q output high, regardless of the state of the output pulse circuitry.
Parametrics
MC74HC4538AD absolute maximum ratings: (1)DC supply voltage: -0.5 to +7.0 V; (2)DC input voltage: -0.5≤VI≤VCC0.5; (3)DC output voltage: -0.5≤VI≤VCC0.5; (4)DC input current: +/-20 mA; (5)DC output current: +/-25 mA; (6)DC supply current: +/-100 mA; (7)Lead temperature, 1 mm from Case for 10 Seconds: 260 °C; (8)storage temperature: -65 to +150 °C.
Features
MC74HC4538AD features: (1)Unlimited Rise and Fall Times Allowed on the Trigger Inputs; (2)Output Pulse is Independent of the Trigger Pulse Width; (3)+/-10% Guaranteed Pulse Width Variation from Part to Part (Using the Same Test Jig); (4)Output Drive Capability: 10 LSTTL Loads; (5)Outputs Directly Interface to CMOS, NMOS and TTL; (6)Operating Voltage Range: 3.0 to 6.0 V; (7)Low Input Current: 1.0 mA; (8)High Noise Immunity Characteristic of CMOS Devices; (9)In Compliance with the Requirements Defined by JEDEC Standard No. 7A; (10)Chip Complexity: 145 FETs or 36 Equivalent Gates.
Diagrams
Image | Part No | Mfg | Description | ![]() |
Pricing (USD) |
Quantity | ||||||||||||
---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
![]() |
![]() MC74HC4538AD |
![]() ON Semiconductor |
![]() Monostable Multivibrator 3-6V Dual Precision |
![]() Data Sheet |
![]() Negotiable |
|
||||||||||||
![]() |
![]() MC74HC4538ADG |
![]() ON Semiconductor |
![]() Monostable Multivibrator 3-6V Dual Precision MonoStable |
![]() Data Sheet |
![]()
|
|
||||||||||||
![]() |
![]() MC74HC4538ADTR2G |
![]() ON Semiconductor |
![]() Monostable Multivibrator 3-6V Dual Precision MonoStable |
![]() Data Sheet |
![]()
|
|
||||||||||||
![]() |
![]() MC74HC4538ADR2G |
![]() ON Semiconductor |
![]() Monostable Multivibrator 3-6V Dual Precision MonoStable |
![]() Data Sheet |
![]()
|
|
||||||||||||
![]() |
![]() MC74HC4538ADTR2 |
![]() ON Semiconductor |
![]() Monostable Multivibrator 3-6V Dual Precision |
![]() Data Sheet |
![]() Negotiable |
|
||||||||||||
![]() |
![]() MC74HC4538ADR2 |
![]() ON Semiconductor |
![]() Monostable Multivibrator 3-6V Dual Precision |
![]() Data Sheet |
![]() Negotiable |
|
