Product Summary
The MC74HC86AFEL is a hex unbuffered inverter.
Parametrics
MC74HC86AFEL absolute maximum ratings: (1)DC supply voltage: -0.5 to +7.0 V; (2)DC input voltage: -0.5 to Vcc+0.5 V; (3)DC output voltage: -0.5 to Vcc+0.5 V; (4)DC input current: +/-20 mA; (5)DC output current: +/-25 mA; (6)DC supply current, Vcc and GND pins: +/-50 mA; (7)power dissipation: 750 mW; (8)storage temperature: -65 to +150 °C.
Features
MC74HC86AFEL features: (1)Output Drive Capability: 10 LSTTL Loads; (2)Outputs Directly Interface to CMOS, NMOS, and TTL; (3)Operating Voltage Range: 2.0 to 6.0 V; (4)Low Input Current: 1 μA; (5)High Noise Immunity Characteristic of CMOS Devices; (6)In Compliance with JEDEC Standard No. 7A Requirements; (7)Chip Complexity: 12 FETs or 3 Equivalent Gates; (8)Pb-Free Packages are Available.

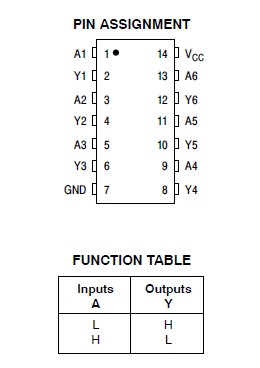

Diagrams
