Product Summary
The MC74LVX4066D is a quad analog switch / multiplexer / demultiplexer. The device has been designed so that the ON resistances (RON) are much more linear over input voltage than RON of metal–gate CMOS analog switches.
Parametrics
MC74LVX4066D absolute maximum ratings: (1)DC supply voltage: -0.5 to +7.0 V; (2)DC input voltage: -0.5 to Vcc+0.5 V; (3)DC output voltage: -0.5 to Vcc+0.5 V; (4)DC input current: +/-20 mA; (5)DC output current: +/-20 mA; (6)DC supply current: +/-50 mA; (7)Lead temperature, 1 mm from Case for 10 Seconds: 260 °C; (8)storage temperature: -65 to +150 °C.
Features
MC74LVX4066D features: (1)Fast Switching and Propagation Speeds; (2)High ON/OFF Output Voltage Ratio; (3)Low Crosstalk Between Switches; (4)Diode Protection on All Inputs/Outputs; (5)Wide Power supply Voltage Range (VCC ?GND) = 2.0 to 6.0 Volts; (6)Analog Input Voltage Range (VCC-GND) = 2.0 to 6.0 Volts; (7)Improved Linearity and Lower ON Resistance over Input Voltage than the MC14016 or MC14066; (8)Low Noise; (9)Chip Complexity: 44 FETs or 11 Equivalent Gates.

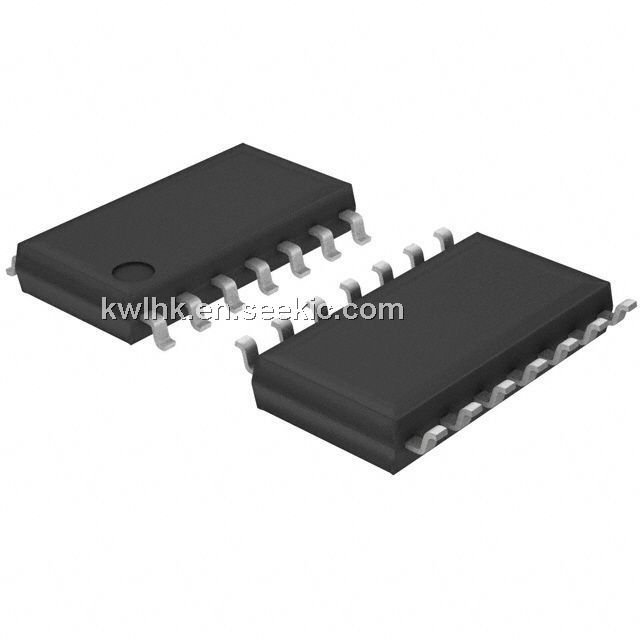

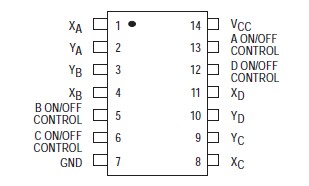

Diagrams
Image | Part No | Mfg | Description | ![]() |
Pricing (USD) |
Quantity | ||||||||||||
---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
![]() |
![]() MC74LVX4066DR2 |
![]() ON Semiconductor |
![]() Multiplexer Switch ICs 2-6V Quad Mux/Demux |
![]() Data Sheet |
![]() Negotiable |
|
||||||||||||
![]() |
![]() MC74LVX4066DR2G |
![]() ON Semiconductor |
![]() Multiplexer Switch ICs 2-6V Quad Mux/Demux -55 to 85deg C |
![]() Data Sheet |
![]()
|
|
||||||||||||
![]() |
![]() MC74LVX4066DTR2G |
![]() ON Semiconductor |
![]() Multiplexer Switch ICs 2-6V Quad Mux/Demux -55 to 85deg C |
![]() Data Sheet |
![]()
|
|
||||||||||||
![]() |
![]() MC74LVX4066DTR2 |
![]() ON Semiconductor |
![]() Multiplexer Switch ICs 2-6V Quad Mux/Demux |
![]() Data Sheet |
![]() Negotiable |
|
