Product Summary
The MMBD4148 is a small signal diode.
Parametrics
MMBD4148 absolute maximum ratings: (1)VRRM Maximum Repetitive Reverse Voltage: 100 V; (2)IF(AV)Average Rectified Forward Current: 200 mA; (3)IFSM Non-repetitive Peak Forward Surge Current: Pulse Width = 1.0 second: 1A, Pulse Width = 1.0 microsecond: 2A; (4)TSTG Storage Temperature Range: -55 to +150 °C; (5)TJ Operating Junction Temperature: 150 °C.
Features
MMBD4148 features: (1)PD Power Dissipation: 350 mW; (2)RθJA Thermal Resistance, Junction to Ambient: 357 °C/W; (3)CT Total Capacitance VR = 0V, f = 1.0MHz: 4.0 pF; (4)trr Reverse Recovery Time IF = 10mA, VR = 6.0V, IRR = 1.0mA, RL = 100Ω: 4.0 ns.

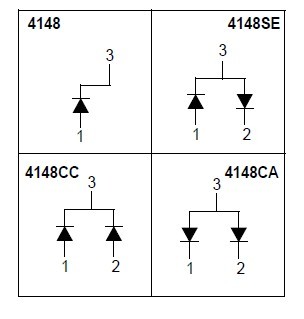

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 MMBD4148 |
Fairchild Semiconductor |
Rectifiers High Cond Ult Fst Di |
Data Sheet |
|
|
||||||||||||
|
MMBD4148,215 |
NXP Semiconductors |
Diodes (General Purpose, Power, Switching) Diode Switching 75V 0.215A |
Data Sheet |
|
|
||||||||||||
|
MMBD4148_D87Z |
Fairchild Semiconductor |
Rectifiers High Conductance Ultra Fast |
Data Sheet |
|
|
||||||||||||
 |
MMBD4148_L99Z |
Fairchild Semiconductor |
Rectifiers High Cond Ultra Fast |
Data Sheet |
Negotiable |
|
||||||||||||
|
MMBD4148_S00Z |
Fairchild Semiconductor |
Rectifiers High Cond Ultra Fast |
Data Sheet |
Negotiable |
|
||||||||||||
|
MMBD4148_Q |
Fairchild Semiconductor |
Rectifiers High cond Ult Fast Diode |
Data Sheet |
Negotiable |
|
||||||||||||
|
MMBD4148-7-F |
Diodes Inc. |
Diodes (General Purpose, Power, Switching) 75V 350mW |
Data Sheet |
|
|
||||||||||||
|
MMBD4148CA_F136 |
Fairchild Semiconductor |
Diodes (General Purpose, Power, Switching) Hi-Conduct UltraFast |
Data Sheet |
|
|
||||||||||||
