Product Summary

The MX27C8100PC-12 is a 5V 8M-bit, one time programmable read only memory. This One Time Programmable Read Only Memory is packaged in industry standard 42 pin dual-in-line plastic package and 44 pin SOP packages.

Parametrics

MX27C8100PC-12 absolute maximum ratings: (1)Ambient Operating Temperature: 0℃ to 70℃; (2)Storage Temperature -65℃ to 125℃; (3)Applied Input Voltage: -0.5V to 7.0V; (4)Applied Output Voltage: -0.5V to VCC + 0.5V; (5)VCC to Ground Potential: -0.5V to 7.0V; (6)A9 & VPP: -0.5V to 13.5V.

Features

MX27C8100PC-12 features: (1)1M x 8 or 512K x 16 organization; (2)+12.5V programming voltage; (3)Fast access time: 100/120/150/200 ns; (4)Totally static operation; (5)Completely TTL compatible; (6)Operating current: 60mA; (7)Standby current: 100uA.

Diagrams

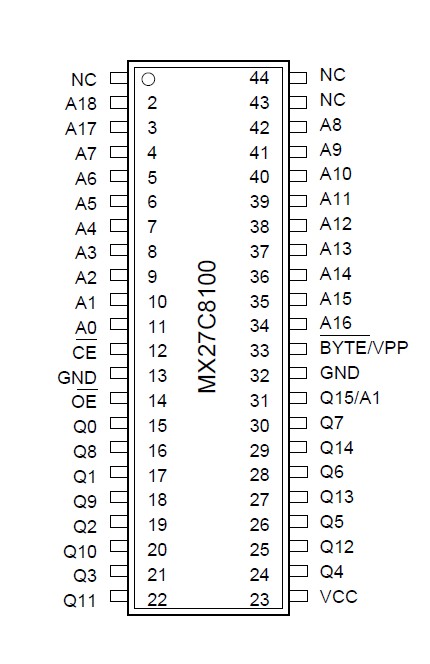

MX27C8100PC-12 pin connection
