Product Summary
The NE1617 is a temperature monitor. It can be used in (1)Desktop computers; (2)Notebook computers; (3)Smart battery packs; (4)Industrial controllers; (5)Telecom equipment.
Parametrics
NE1617 absolute maximum ratings: (1)VDD to GND:–0.3 to +6 V; (2)D+, ADD0, ADD1:–0.3 to VDD+0.3 V; (3)D– to GND :–0.3 to +0.8 V; (4)SCLK, SDATA, ALERT, STBY: –0.3 to +6 V; (5)Input current SDATA: –1 to +50 mA; (6)D– current: ±1 mA; (7)Operating temperature range: 0 to +120 °C; (8)Maximum junction temperature: +150 °C; (9)Storage temperature range: –65 to +150 °C.
Features
NE1617 features: (1)Replacement for Maxim MAX1617 and Analog Devices ADM1021; (2)Monitors local and remote temperature; (3)No calibration required; (4)Programmable over/under temperature alarm; (5)SMBus 2-wire serial interface; (6)3V to 5.5V supply range; (7)70ua supply current in operating mode; (8)3ua (typical) supply current in standby mode; (9)Small 16-lead QSOP package.
Diagrams
Image | Part No | Mfg | Description | ![]() |
Pricing (USD) |
Quantity | ||||||||||||
---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
![]() |

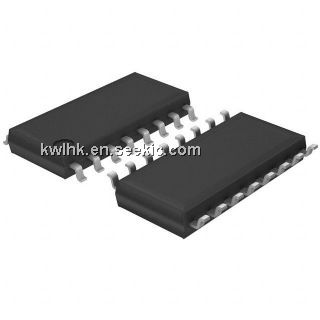

![]() NE1617 |
![]() Other |
![]() |
![]() Data Sheet |
![]() Negotiable |
|
||||||||||||
![]() |
![]() NE1617A |
![]() Other |
![]() |
![]() Data Sheet |
![]() Negotiable |
|
||||||||||||
![]() |
![]() NE1617ADS,118 |
![]() NXP Semiconductors |
![]() Board Mount Temperature Sensors TEMP SENSOR DIGITAL |
![]() Data Sheet |
![]()
|
|
||||||||||||
![]() |
![]() NE1617ADS,112 |
![]() NXP Semiconductors |
![]() Board Mount Temperature Sensors I2C LOC +/- 2OC AND |
![]() Data Sheet |
![]()
|
|
||||||||||||
![]() |
![]() NE1617ADS |
![]() NXP Semiconductors |
![]() Board Mount Temperature Sensors I2C LOC +/- 2OC AND REM +/- 3OC TS |
![]() Data Sheet |
![]() Negotiable |
|
||||||||||||
![]() |
![]() NE1617ADS/G |
![]() NXP Semiconductors (founded by Philips) |
![]() IC SMBUS TEMP MONITOR 16SSOP |
![]() Data Sheet |
![]() Negotiable |
|
||||||||||||
![]() |
![]() NE1617DS,112 |
![]() NXP Semiconductors |
![]() Board Mount Temperature Sensors I2C LOC +/- 2OC AND |
![]() Data Sheet |
![]() Negotiable |
|
||||||||||||
![]() |
![]() NE1617DS |
![]() NXP Semiconductors |
![]() Board Mount Temperature Sensors I2C LOC +/- 2OC AND REM +/- 3OC TS |
![]() Data Sheet |
![]() Negotiable |
|
