Product Summary
The OMAP1510CGZG2 is a low-power applications processor based on an ARM926EJ-S and a C674 DSP core. The OMAP1510CGZG2 provides significantly lower power than other members of the TMS320C6000 platform of DSPs. The device enables OEMs and ODMs to quickly bring to market devices featuring robust operating systems support, rich user interfaces, and high processing performance life through the maximum flexibility of a fully integrated mixed processor solution.
Parametrics
OMAP1510CGZG2 absolute maximum ratings: (1)Core Logic, Variable and Fixed: -0.5 V to 1.4 V; (2)I/O, 1.8V: -0.5 V to 2 V; (3)I/O, 3.3V: -0.5 V to 3.8V; (4)Oscillator inputs (OSCIN, RTC_XI), 1.2V: -0.3 V to CVDD + 0.3V; (5)Dual-voltage LVCMOS inputs, 3.3V or 1.8V (Steady State): -0.3V to DVDD + 0.3V.
Features
OMAP1510CGZG2 features: (1)Supports TI Basic Secure Boot; (2)Enhanced Direct-Memory-Access Controller (EDMA3); (3)DDR2/Mobile DDR Memory Controller; (4)Two Multimedia Card (MMC)/Secure Digital (SD)Card Interface; (5)10/100 Mb/s Ethernet MAC (EMAC); (6)Programmable Real-Time Unit Subsystem Support; (7)Three Configurable UART Modules; (8)One Multichannel Audio Serial Port; (9)Two Multichannel Buffered Serial Ports.

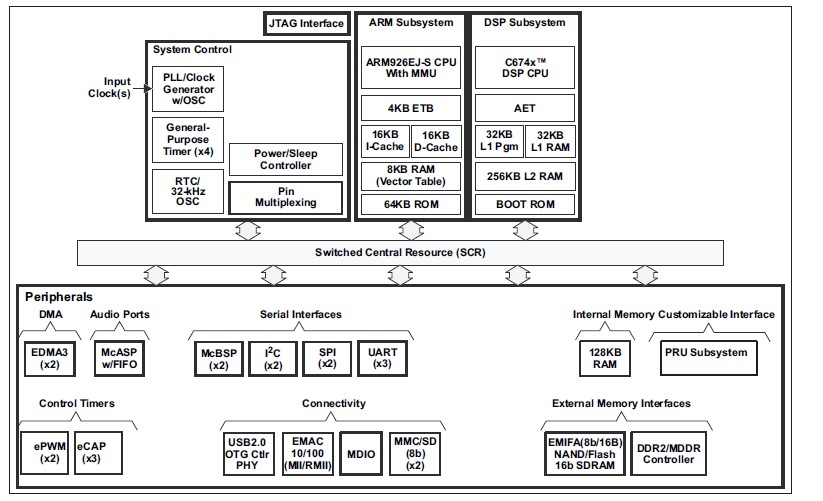

Diagrams
