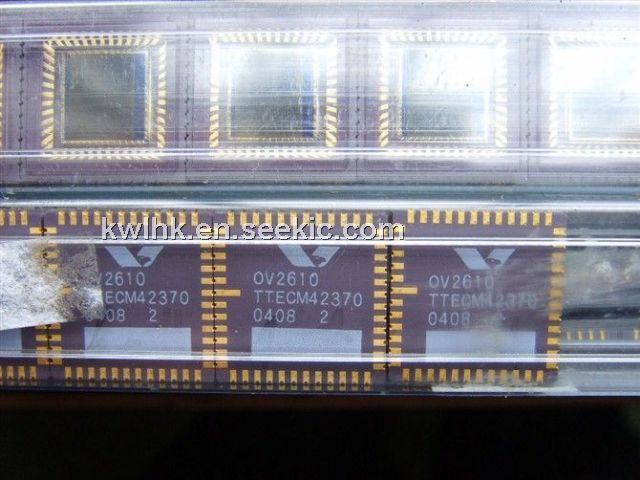

Product Summary

The OV2610 is a single-chip, high-performance 2megapixel CMOS CameraChip sensor with a 1/5-inch optical format. The OV2610 is based on OmniVisions 1.75 micron OmniPixel3-HS architecture which uses Ultra Low Stack Height (ULSH) pixels to acheive industryleading low-light sensitivity of 1030 mV/(Lux-sec), which is vital for high frame rate video applications. The small form factor of the OV2610 also makes it possible for it to fit in a 6.5 x 6.5 mm camera module. The OV2610 operates at up to 15 frames per second (fps) in full resolution and 30 fps in SVGA mode. The captured data can be transferred either by a standard parallel digital video port (DVP) or by a single-lane MIPIhigh-speed serial interface. The DVP can also be used for input from an external secondary camera, enabling the advanced ISP of the OV2610 to be used by the secondary camera with continued output through the MIPI interface.

Parametrics

OV2610 absolute maximum ratings: (1)power supply: core: 1.5VDC + 5%, analog: 2.45 ~ 3.0V, I/O: 1.7 ~ 3.0V; (2)power requirements: active: 250 mW, standby: 75 μA; (3)temperature range: operating: -20° C to 70℃, stable image: 0° C to 50° C; (4)input clock frequency: 6 ~ 27 MHz; (5)max image transfer rate: UXGA (1600 x 1200): 15 fps (and any size scaling down from UXGA), SVGA (800 x 600): 30 fps (and any size scaling down from SVGA); (6)S/N ratio: 38 dB; (7)dynamic range: 66 dB.

Features

OV2610 features: (1)support for output formats: RAW RGB, RGB565/555, YUV422/420, and YCbCr422; (2)programmable controls for frame rate, AEC/AGC 16-zone size/ position/weight control, mirror and flip, scaling, cropping, and windowing; (3)image quality controls: color saturation, hue, gamma, sharpness (edge enhancement), lens correction, defective pixel canceling, and noise canceling; (4)second CameraChip-sharing ISP and MIPI interface; (5)standard serial SCCB interface; (6)digital video port (DVP)parallel output interface; (7)MIPI serial output interface; (8)embedded one-time programmable (OTP)memory.

Diagrams

OV2610 pin connection
