Product Summary
The PBL40170/1LQ1R1A is a diode incorporated.
Parametrics
PBL40170/1LQ1R1A absolute maximum ratings: (1)Peak Repetitive Reverse Voltage, Working Peak Reverse Voltage, DC Blocking Voltage: 50 V; (2)RMS Reverse Voltage VR(RMS): 35 V; (3)Average Rectified Output Current @ TC= 75°C IO: 4.0 A; (4)Non-Repetitive Peak Forward Surge Current, 8.3 ms single half-sine-wave superimposed on rated load (JEDEC method)IFSM: 150 A; (5)Forward Voltage per element @ IF = 3.0A VFM: 1.1 V; (6)Peak Reverse Current @TC = 25°C: 10μA; (7)at Rated DC Blocking Voltage @ TC = 100°C IR: 1.0 mA; (8)I2t Rating for Fusing (t < 8.3ms)I2t: 166 A2s; (9)Operating and Storage Temperature Range Tj, TSTG: -65 to +125 °C.
Features
PBL40170/1LQ1R1A features: (1)High Case Dielectric Strength of 1500V; (2)Low Forward Voltage Drop, High Current Capability; (3)Surge Overload Rating to 150A Peak; (4)Ideal for Printed Circuit Board Application; (5)Plastic Material - UL Flammability Classification 94V-0; (6)UL Listed Under Recognized Component Index, File Number E95060.

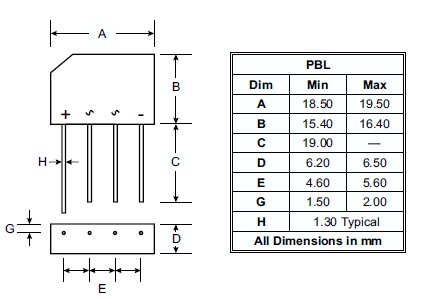

Diagrams
