Product Summary

The PI5C6801CL is a 10-bit bus switch. It also precharges the B port to a user-selectable bias voltage (BIASV) to minimize live-insertion noise.

Parametrics

PI5C6801CL absolute maximum ratings: (1)Storage Temperature:–65°C to +150°C; (2)Supply Voltage Range:–0.5V to +7V; (3)DC Input Voltage:–0.5V to +7V; (4)Input Clamp Current, IIK (V1<0):–50mA; (5)DC output current:120 mA; (6)Power Dissipation: 0.5 W.

Features

PI5C6801CL features: (1)RON is 5 Ohm typical; (2)Undershoot protection on A-port only; (3)Industrial Operation Temperature: -40°C to +85°C; (4)Near Zero propagation delay; (5)VCC Operating Range: +4.0V to +5.5V; (6)Outputs are pre-charged by bias voltage to minimize signal distortion during live insertion; (7)Packages options: -24-pin 150 mil-wide plastic QSOP (Q), 24-pin 173 mil-wide plastic TSSOP (L).

Diagrams

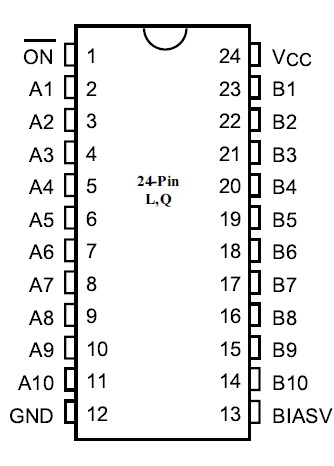

PI5C6801CL pin connection
