Product Summary
The POMAP311GGZG is a highly integrated hardware and software platform, designed to meet the application processing needs of next-generation embedded devices. The POMAP311GGZG platform enables OEM and ODM to quickly bring to market devices featuring rich user interfaces, high processing performance, and long battery life through the maximum flexibility of a fully integrated mixed processor solution.The POMAP311GGZG device is designed to run leading open and embedded RISC-based operating systems, as well as the Texas Instruments (TI) DSP/BIOS software kernel foundation, and is available in two 289-ball lead-free ball grid array (BGA) packages (ZDY and ZZG).
Parametrics
POMAP311GGZG absolute maximum ratings: (1)Supply voltage range (core): −0.5 V to 2.1 V; (2)Supply voltage range (I/O), DVDD1/2/3/4/5/6/7/8/9/RTC, 1.8 V nominal: −0.5 V to 2.1 V; (3)Input voltage range, VI (12, 13, or 19.2 MHz and 32-kHz oscillator): −0.5 V to 2.1 V; (4)Input voltage range, VI (USB transceivers): −0.5 V to DVDD + 0.5 V; (5)Input voltage range, VI (I2C): − 0.5 V to 4.5 V; (6)Output voltage range, VO (USB transceivers): −0.5 V to DVDD + 0.5 V; (7)Output voltage range, VO (I2C): −0.5 V to 4.5 V; (8)Operating temperature range, TC: −40°C to 85°C; (9)Storage temperature range, Tstg: −65°C to 150°C.
Features
POMAP311GGZG features: (1)Three 32-Bit Timers and Watchdog Timer; (2)USB 1.1 Host and Client Controllers; (3)USB On-the-Go (OTG)Controller; (4)3 USB Ports, One With an Integrated Transceiver; (5)Camera Interface for Parallel CMOS Sensors; (6)Real-Time Clock (RTC); (7)Pulse-Width Tone (PWT)Interface; (8)Pulse-Width Light (PWL)Interface; (9)Keyboard Matrix Interface (6 x 5 or 8 x 8); (10)HDQ/1-Wire Interface; (11)Multimedia Card (MMC)and Secure Digital (SD)Interface; (12)Up to 16 MPU General-Purpose I/Os; (13)Two LED Pulse Generators (LPGs).

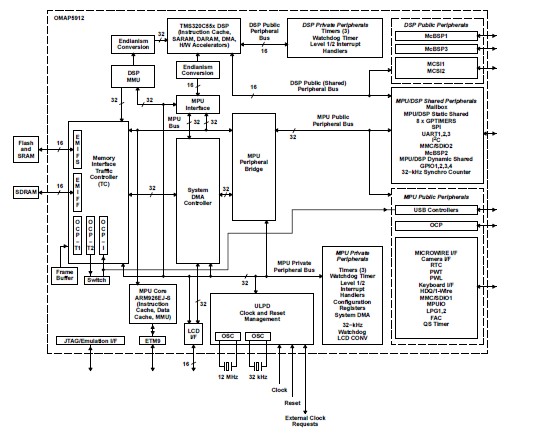

Diagrams
