Product Summary

The RC1117DX is a for low dropout three-terminal regulator . The RC1117DX is have been optimized for low voltage where transient response and minimum input voltage are critical. The RC1117DX is designed specifically to be used in Active Terminators for SCSI bus. Applications are (1)Active SCSI terminators; (2)High efficiency linear regulators; (3)Post regulators for switching supplies; (4)Battery chargers; (5)5V to 3.3V linear regulators; (6)Motherboard clock supplies.

Parametrics

RC1117DX absolute maximum ratings: (1)VIN: 7.5 V; (2)Operating Junction Temperature Range: 0 to 125 °C; (3)Storage Temperature Range: -65 to 150 °C; (4)Lead Temperature (Soldering, 10 sec.): 300 °C.

Features

RC1117DX features: (1)Low dropout voltage; (2)Load regulation: 0.05% typical; (3)Trimmed current limit; (4)On-chip thermal limiting; (5)Standard SOT-223, TO-263, and TO-252 packages; (6)Three-terminal adjustable or fixed 2.5V, 2.85V, 3.3V, 5V.

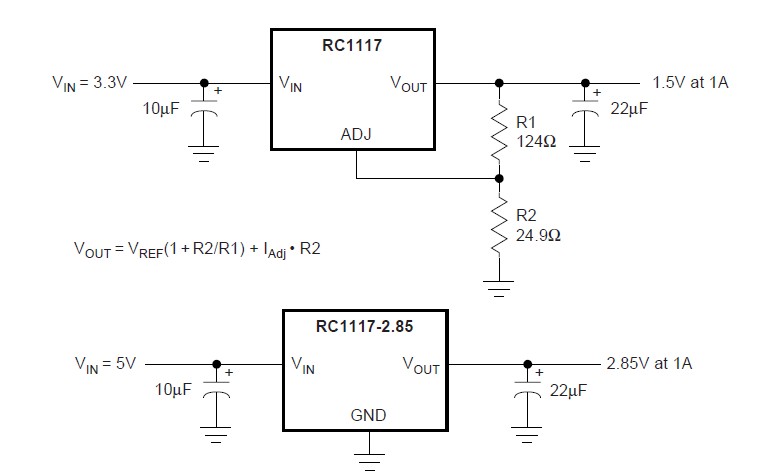

Diagrams

RC1117DX pin connection

Image Part No Mfg Description Data Sheet Download Pricing
(USD)		 Quantity

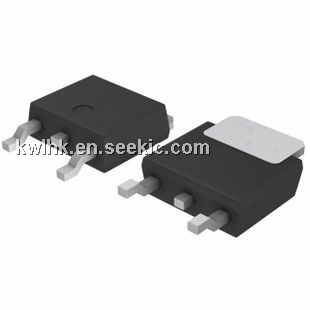

RC1117DX
RC1117DX
Fairchild Semiconductor
Low Dropout (LDO) Regulators 1A Low Dropout Lin
Data Sheet
Negotiable
