Product Summary
The RC28F256K3C120 is a Flash memory. The RC28F256K3C120 is organized as one-hundredtwenty- eight 128-Kbyte (131,072 bytes) erase blocks. A 128-bit Protection Register has multiple uses, including unique flash device identification. Each device incorporates a Write Buffer of 32 bytes (16 words) to allow optimum programming performance. By using the Write Buffer, data is programmed in buffer increments. The RC28F256K3C120 can improve system program performance more than 20 times over non-Write Buffer writes. Blocks are selectively and individually lockable in-system.Individual block locking uses block lock-bits to lock and unlock blocks. Block lock-bits gate block erase and program operations. Lock-bit configuration operations set and clear lock-bits (Set Block Lock-Bit and Clear Block Lock-Bits commands).
Parametrics
RC28F256K3C120 absolute maximum ratings: (1)Operating temperature under bias: -55 to +125 °C; (2)Storage temperature range: -65 to +150 °C; (3)Voltage on any other pin to VSS: -0.5 to VDD+0.5 V v; (4)Maximum IOL per I/O pin: 15 mA; (5)Power dissipation (based on package heat transfer, not device power consumption): 1.5 W.
Features
RC28F256K3C120 features: (1)Multi-Level Cell Technology: High Density at Low Cost; (2)High-Density Symmetrical 128-Kbyte Blocks; (3)110/115/120/150 ns Initial Access Speed; (4)125 ns Initial Access Speed (256 Mbit density only); (5)25 ns Asynchronous Page mode Reads; (6)30 ns Asynchronous Page mode Reads (256Mbit density only); (7)32-Byte Write Buffer; (8)Program and Erase suspend support; (9)Flash Data Integrator (FDI), Common Flash Interface (CFI)Compatible; (10)56-Lead TSOP Package; (11)64-Ball Intel Easy BGA Package; (12)Lead-free packages available; (13)48-Ball Intel VF BGA Package (32 and 64 Mbit)(x16 only).

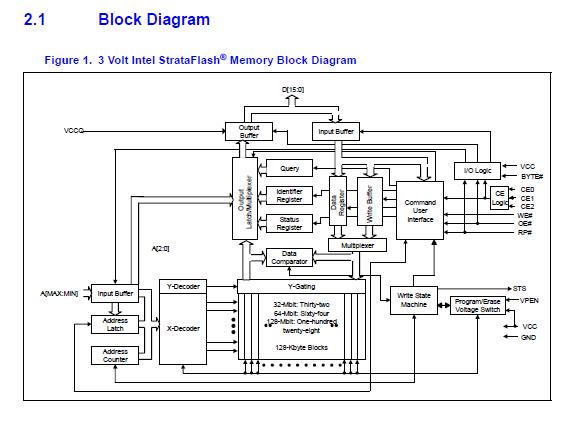

Diagrams
Image | Part No | Mfg | Description | ![]() |
Pricing (USD) |
Quantity | ||||||||||||
---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
![]() |
![]() RC28F256K3C120 |
![]() |
![]() IC FLASH 256MBIT 120NS 64BGA |
![]() Data Sheet |
![]() Negotiable |
|
||||||||||||
